LTC1094CN#PBF - Analog Devices

Description: Data Acquisition System (DAS), ADC 10 b Serial 20-PDIP 1-, 2-, 6- and 8-Channel, 10-Bit Serial I/O Data Acquisition Systems

Download LTC1094CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

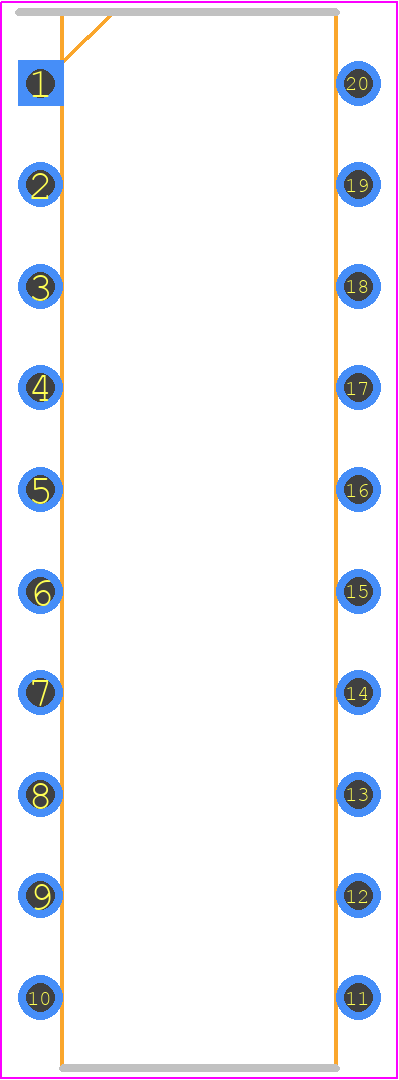

LTC1094CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom
3D Models
LTC1094CN#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom

LTC1094CN#PBF Details

  • Manufacturer Part Number:

    LTC1094CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    20 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    24.51 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1094CN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1094CN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure the LTC1094CN#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be attached to the package if necessary. Additionally, the ambient temperature should be monitored to ensure it remains within the specified range.
  • Potential sources of error in the LTC1094CN#PBF include offset voltage, gain error, and noise. These can be minimized by using a high-quality voltage reference, ensuring proper PCB layout and grounding, and using filters or averaging techniques to reduce noise. Additionally, calibration and trimming can be used to minimize offset and gain errors.
  • To troubleshoot issues with the LTC1094CN#PBF, start by verifying the power supply voltages and ensuring that the device is properly biased. Check the input and output signals using an oscilloscope to identify any anomalies. Verify that the PCB layout and component values match the recommended design. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • Operating the LTC1094CN#PBF beyond its specified frequency range can result in reduced accuracy, increased noise, and potential instability. The device may also exhibit non-linear behavior, and its output may become distorted or oscillate. It's essential to ensure that the device is operated within its specified frequency range to maintain optimal performance and accuracy.
