LTC1096CN8#PBF - Analog Devices

Description: LTC1096CN8#PBF, 8 bit ADC Differential, SPI, 8-Pin PDIP

Download LTC1096CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

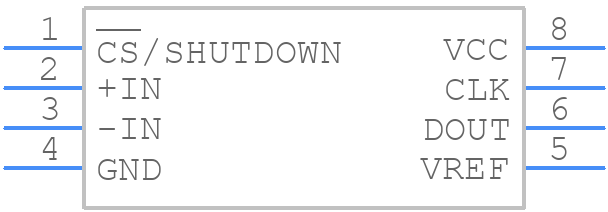

Symbol
LTC1096CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1096CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP
click to zoom
3D Models
LTC1096CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead PDIP
click to zoom

LTC1096CN8#PBF Details

  • Manufacturer Part Number:

    LTC1096CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    9.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.033 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1096CN8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1096CN8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To optimize the performance of the LTC1096CN8 in a noisy environment, use shielding, filtering, and decoupling techniques. Use a shielded enclosure, add ferrite beads or chokes to the input and output lines, and decouple the power supply lines with capacitors. Additionally, consider using a low-pass filter or a notch filter to reject specific noise frequencies.
  • The maximum operating temperature range for the LTC1096CN8 is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Yes, the LTC1096CN8 can be used with a single-ended input signal. However, it's recommended to use a differential input signal to take advantage of the device's common-mode rejection ratio (CMRR) and to improve noise immunity.
  • To troubleshoot common issues with the LTC1096CN8, such as oscillations or instability, check the power supply voltage, decoupling, and grounding. Ensure that the device is properly bypassed, and the input and output lines are properly terminated. Also, check for any layout or routing issues that may be causing the problem.
