LTC1100CN8#PBF - Analog Devices

Description: LTC1100CN8#PBF, Instrumentation Amplifier, 0.01mV Offset, 90dB CMRR, 12 V, 15 V, 9 V, 8-Pin PDIP

Download LTC1100CN8#PBF Model

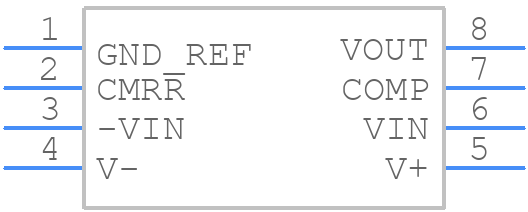

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1100CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8
click to zoom
3D Models
LTC1100CN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8
click to zoom

LTC1100CN8#PBF Details

  • Manufacturer Part Number:

    LTC1100CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.000135 µA

  • Bandwidth (3dB)-Nom:

    0.018 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Current-Max (IIO):

    0.000065 µA

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Non-linearity-Max:

    0.006%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.81 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Width:

    6.477 mm

LTC1100CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1100CN8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the LTC1100CN8 in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the LTC1100CN8 is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced reliability and performance.
  • The LTC1100CN8 is not designed for high-voltage applications. The maximum input voltage is 5.5V, and exceeding this voltage can damage the device. If you need a high-voltage converter, consider using a different device or adding external voltage regulation.
  • To troubleshoot issues with the LTC1100CN8, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for noise, oscillations, or other anomalies.
