LTC1196-1ACS8#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 8-Bit 710ns, 1MHz Sampling ADC

Download LTC1196-1ACS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

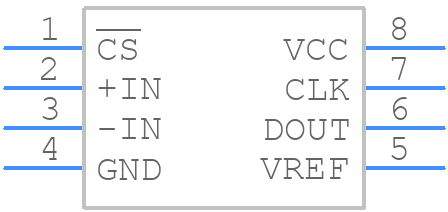

LTC1196-1ACS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1196-1ACS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LTC1196-1ACS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LTC1196-1ACS8#PBF Details

  • Manufacturer Part Number:

    LTC1196-1ACS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    6.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    1.85 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1196-1ACS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1196-1ACS8#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC1196-1ACS8#PBF requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VIN, and finally the clock signal.
  • The LTC1196-1ACS8#PBF can support clock frequencies up to 100MHz, but it's recommended to use a clock frequency between 10MHz to 50MHz for optimal performance. The device requires a clock signal with a duty cycle between 40% and 60%, and it's recommended to use a clock signal with a rise and fall time of less than 5ns.
  • The LTC1196-1ACS8#PBF has a programmable gain amplifier that can be configured for different gain settings using the GAIN pin. The device offers four gain settings: 1V/V, 2V/V, 5V/V, and 10V/V, which can be selected by connecting the GAIN pin to VCC, VIN, or GND.
  • The LTC1196-1ACS8#PBF can handle input voltages up to ±5V, and it has internal input protection features such as overvoltage protection and ESD protection. However, it's still recommended to use external input protection circuits to protect the device from high-voltage transients and ESD events.
