LTC1258CMS8-2.5#PBF - Analog Devices

Description: Voltage References uP Low Dropout Series Bandgap Ref

Download LTC1258CMS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

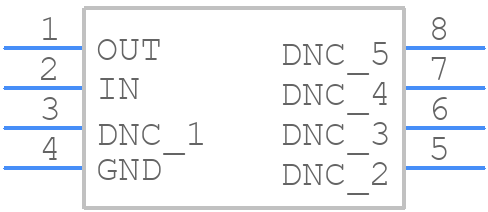

Symbol
LTC1258CMS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1258CMS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead
click to zoom
3D Models
LTC1258CMS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead
click to zoom

LTC1258CMS8-2.5#PBF Details

  • Manufacturer Part Number:

    LTC1258CMS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.5052 V

  • Output Voltage-Min:

    2.4948 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    60 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

LTC1258CMS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1258CMS8-2.5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1258CMS8-2.5#PBF is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating due to high ambient temperatures or high power dissipation, and consider using thermal interface materials if necessary.
  • The recommended input voltage range for the LTC1258CMS8-2.5#PBF is 2.5V to 5.5V. Operating outside this range may affect the device's performance, including reduced accuracy, increased noise, and potential damage to the device. It's essential to ensure the input voltage is within the specified range to guarantee optimal performance.
  • To troubleshoot common issues with the LTC1258CMS8-2.5#PBF, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and check for oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The LTC1258CMS8-2.5#PBF is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Consider factors such as the device's fault tolerance, failure modes, and compliance with relevant safety standards. Consult with Analog Devices Inc. or a qualified reliability engineer to determine the device's suitability for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1258CMS8-2.5#PBF Overview

Use the download button to access the LTC1258CMS8-2.5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC12, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
