LTC1273BCN#PBF - Analog Devices

Description: LTC1273BCN#PBF, 12 bit ADC, Parallel, 24-Pin PDIP

Download LTC1273BCN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

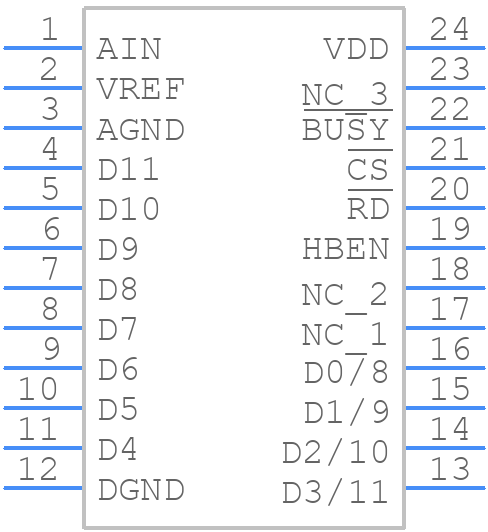

Symbol
LTC1273BCN#PBF - Analog Devices - PCB symbol
click to zoom

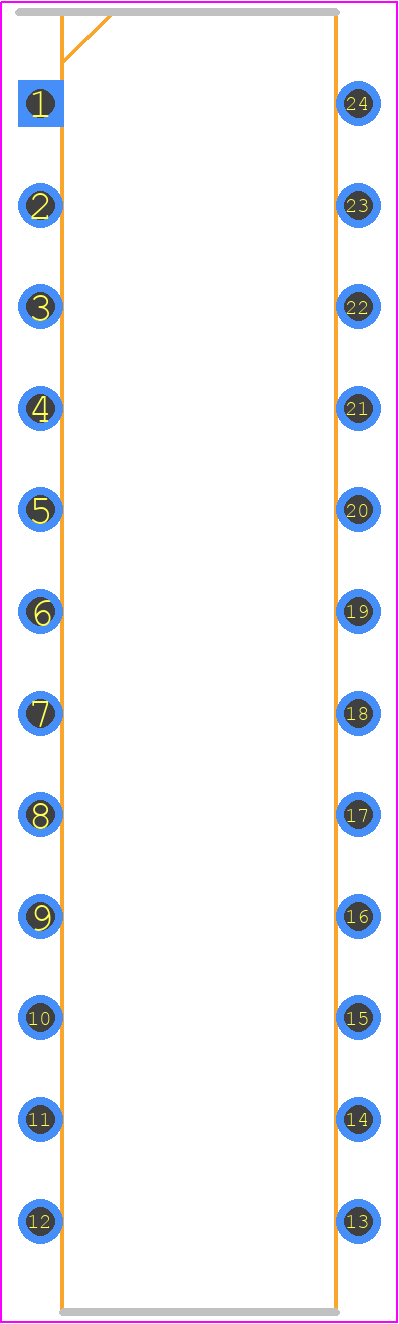

PCB Footprints
LTC1273BCN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N24
click to zoom
3D Models
LTC1273BCN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N24
click to zoom

LTC1273BCN#PBF Details

  • Manufacturer Part Number:

    LTC1273BCN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1510 (N24)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    2700 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    32.131 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.3 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1273BCN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1273BCN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-72 for more details.
  • To ensure stability, make sure to follow the recommended layout and placement, use a sufficient amount of bypass capacitance (at least 10uF), and keep the input and output impedance low. Also, avoid using long input traces and keep the device away from noise sources. If oscillation occurs, try adding a small series resistor (10-20 ohms) in the output stage.
  • The maximum output current of the LTC1273BCN is 150mA. However, this can be limited by the thermal characteristics of the device and the PCB. Make sure to follow the thermal management guidelines in the datasheet to ensure reliable operation.
  • The LTC1273BCN is rated for operation up to 70°C. However, the device can be used in higher temperature environments with some derating. Refer to the datasheet for the thermal derating curve and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC1273BCN, start by checking the input and output voltages, and the output current. Verify that the device is properly powered and that the input and output capacitors are properly connected. Check for noise and oscillations on the input and output lines. If the issue persists, consult the application notes and the datasheet for more troubleshooting guidance.
