LTC1274CSW#TRPBF - Analog Devices

Description: 12-Bit, 10mW, 100ksps ADCs with 1µA Shutdown, Low Power Dissipation: 10mW, Power Shutdown to 1µA in Sleep Mode

Download LTC1274CSW#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

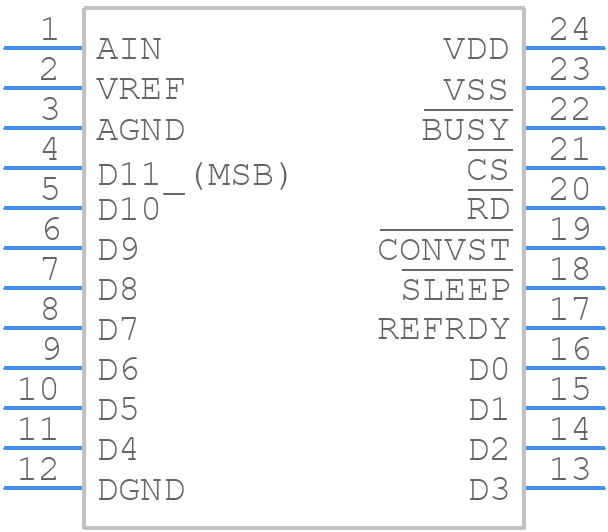

Symbol
LTC1274CSW#TRPBF - Analog Devices - PCB symbol
click to zoom

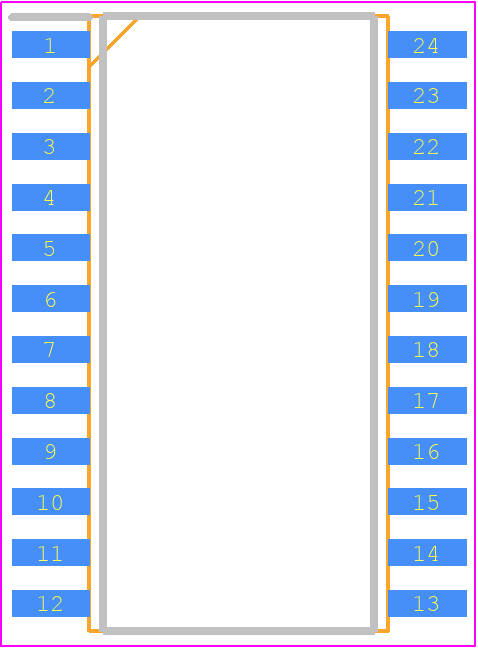

PCB Footprints
LTC1274CSW#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_W_2026-1.5
click to zoom

LTC1274CSW#TRPBF Details

  • Manufacturer Part Number:

    LTC1274CSW#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1620 (SW24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC1274CSW#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1274CSW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate temperature measurement with the LTC1274CSW, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in a thermally stable environment, and the temperature sensor should be thermally coupled to the device being measured.
  • The maximum clock frequency for the LTC1274CSW is 1.25 MHz. Exceeding this frequency may result in reduced accuracy and increased noise.
  • Yes, the LTC1274CSW can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple channels. However, it's essential to ensure that the multiplexer is designed to minimize channel-to-channel crosstalk and noise.
  • The power-on reset (POR) and brown-out reset (BOR) functions of the LTC1274CSW can be handled by using an external reset circuit or by using a microcontroller to monitor the POR and BOR pins and take appropriate action. It's essential to ensure that the reset circuit is designed to handle the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1274CSW#TRPBF Overview

Use the download button to access the LTC1274CSW#TRPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC12, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
