LTC1290BCSW#PBF - Analog Devices

Description: IC DAS/ADC 12BIT 50K 20SOIC

Download LTC1290BCSW#PBF Model

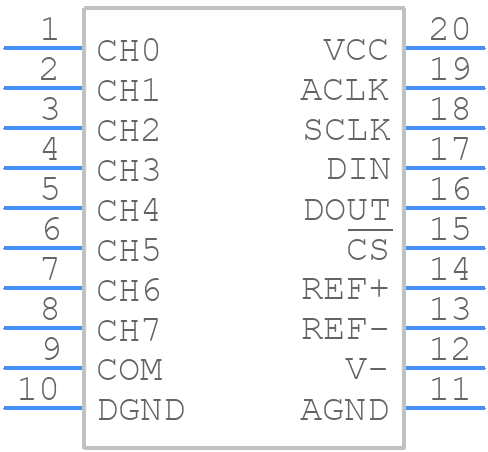

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1290BCSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW20
click to zoom
3D Models
LTC1290BCSW#PBF - Analog Devices  - 3D model - Small Outline Packages - SW20
click to zoom

LTC1290BCSW#PBF Details

  • Manufacturer Part Number:

    LTC1290BCSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -5.05 V

  • Conversion Time-Max:

    13 µs

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8015 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.05 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

LTC1290BCSW#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1290BCSW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure accuracy and linearity, it's essential to follow proper PCB layout and design guidelines, use a high-quality voltage reference, and ensure that the input signals are within the specified range. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
  • Potential sources of error include noise, thermal drift, and non-linearity. To mitigate these errors, use proper shielding and grounding, ensure a stable power supply, and use a high-quality voltage reference. Additionally, consider using a chopper-stabilized amplifier or a delta-sigma ADC to improve accuracy and reduce noise.
  • The LTC1290BCSW#PBF can be interfaced with a microcontroller or digital signal processor using a serial interface such as SPI or I2C. Ensure that the interface is properly configured, and the clock and data lines are properly terminated to prevent signal reflections and noise.
  • The power consumption of the LTC1290BCSW#PBF is typically around 10mA, and the device has a thermal shutdown feature to prevent overheating. Ensure reliable operation by providing a stable power supply, using a heat sink if necessary, and keeping the device within the specified operating temperature range.
