LTC1294BCSW#PBF - Analog Devices

Description: Single Chip 12-Bit Data Acquisition System ,500mW ,12V ,–65°C to 150°C

Download LTC1294BCSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

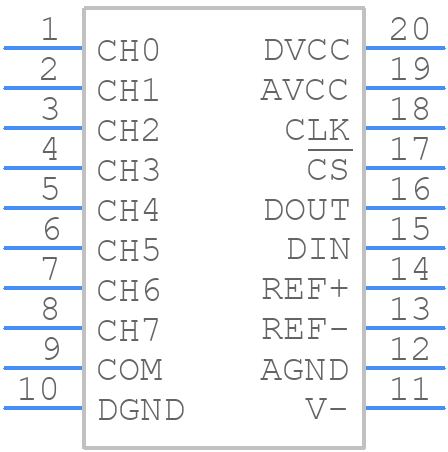

LTC1294BCSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 20-Lead Plastic Small Outline (Wide .300 Inch)
click to zoom

LTC1294BCSW#PBF Details

  • Manufacturer Part Number:

    LTC1294BCSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -5.05 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    13.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0465 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.95 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

LTC1294BCSW#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REF pin.
  • To ensure accuracy, use a low-noise, low-impedance signal source, and use a buffer amplifier if necessary. Also, use a high-quality, low-jitter clock source, and ensure the ADC is properly calibrated. Additionally, consider using a filter or a signal conditioner to remove noise and aliasing.
  • The maximum clock frequency for the LTC1294BCSW#PBF is 1.5MHz. Using a higher clock frequency can result in increased power consumption, reduced accuracy, and potential oscillations. It's recommended to use a clock frequency that is within the specified range to ensure accurate conversions and minimize power consumption.
  • If the input signal exceeds the maximum input range, consider using an attenuator or a voltage divider to reduce the signal amplitude. Alternatively, use an amplifier with a gain less than 1 to reduce the signal amplitude. Also, consider using a clamp circuit to limit the input signal to within the ADC's input range.
  • The recommended power-up sequence is to apply VCC first, followed by the clock signal, and then the input signal. Not following the recommended sequence can result in incorrect conversions, oscillations, or even damage to the device.
