LTC1296BCSW#TRPBF footprint, schematic symbol and 3D model by Analog Devices

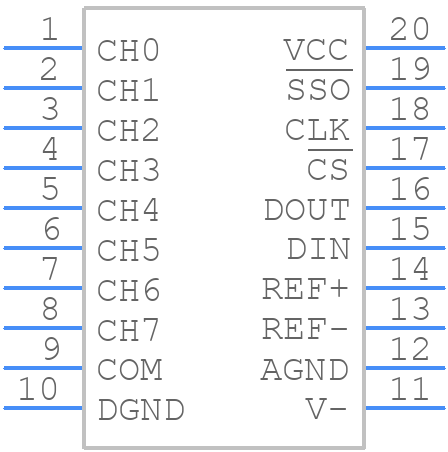

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC1296BCSW#TRPBF
Part Number LTC1296BCSW#TRPBF
Manufacturer Analog Devices
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SW Package 20-Lead Plastic Small Outline (Wide .300 Inch)
Released Date Sep 2, 2026
Last Modified Date Sep 2, 2026 8:40 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC1296BCSW#TRPBF Details

Manufacturer Part Number:
LTC1296BCSW#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SO-20
Pin Count:
20
Manufacturer Package Code:
05-08-1620 (SW20)
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog Input Voltage-Max:
5.05 V
Analog Input Voltage-Min:
-5.05 V
Conversion Time-Max:
12 µs
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
13.3 mm
Linearity Error-Max (EL):
0.0122%
Moisture Sensitivity Level:
1
Negative Supply Voltage-Nom:
-5 V
Number of Analog In Channels:
8
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.0465 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
2.95 mm
Supply Current-Max:
12 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.493 mm
