LTC1296CCSW#TRPBF - Analog Devices

Description: Data Acquisition System (DAS), ADC 12 b 46.5k Serial, Parallel 20-SO

Download LTC1296CCSW#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

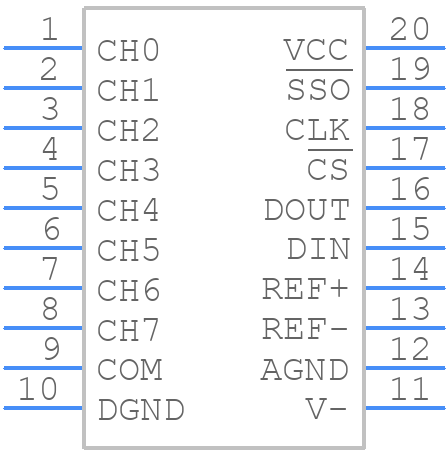

Symbol
LTC1296CCSW#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1296CCSW#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_W-2026-3
click to zoom
3D Models
LTC1296CCSW#TRPBF - Analog Devices - 3D model - Small Outline Packages - SOIC_W-2026-3
click to zoom

LTC1296CCSW#TRPBF Details

  • Manufacturer Part Number:

    LTC1296CCSW#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -5.05 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    13.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0465 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.95 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

LTC1296CCSW#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1296CCSW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it is recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure accurate temperature measurement with the LTC1296CCSW, it is recommended to use a thermocouple with a high accuracy rating, to calibrate the device using a known temperature reference, and to minimize thermal gradients and noise in the system.
  • The maximum cable length for the LTC1296CCSW's serial interface depends on the specific application and the noise environment. However, as a general rule, it is recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise and signal degradation.
  • The LTC1296CCSW is specified to operate from a 4.5V to 5.5V power supply, so it can be used with a 5V power supply. However, it is recommended to ensure that the power supply is stable and well-regulated to minimize noise and ensure accurate operation.
  • To troubleshoot communication issues with the LTC1296CCSW, it is recommended to check the serial interface connections, ensure that the correct communication protocol is being used, and verify that the device is properly powered and configured. Additionally, using a logic analyzer or oscilloscope can help to identify any issues with the serial data transmission.
