LTC1296DISW#PBF - Analog Devices

Description: Data Acquisition System (DAS), ADC 12 b 46.5k Serial, Parallel 20-SO

Download LTC1296DISW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

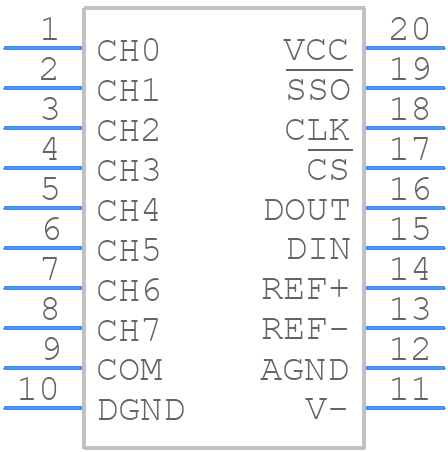

LTC1296DISW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1296DISW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_W-2026-5
click to zoom
3D Models
LTC1296DISW#PBF - Analog Devices - 3D model - Small Outline Packages - SOIC_W-2026-5
click to zoom

LTC1296DISW#PBF Details

  • Manufacturer Part Number:

    LTC1296DISW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0111 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    0.64 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1296DISW#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC1296 is -40°C to 125°C, but it can be extended to -55°C to 150°C with some limitations. It's essential to consult the datasheet and application notes for specific temperature-related considerations.
  • To ensure accurate voltage measurements, it's crucial to follow proper PCB layout and design guidelines, use a low-noise power supply, and minimize noise coupling. Additionally, consider using a voltage reference with low temperature drift and noise, and calibrate the device during production or in the application.
  • Yes, the LTC1296 can be used with a single-ended power supply, but it's essential to ensure that the input voltage range is within the specified limits (typically 4.5V to 36V). Additionally, consider using a voltage regulator or a voltage doubler to generate the required voltage rails.
  • The LTC1296 can be interfaced with a microcontroller or digital signal processor using a serial interface (SPI or I2C). Ensure that the interface is properly configured, and the clock frequency is within the specified range (typically 100 kHz to 2 MHz). Consult the datasheet and application notes for specific interface requirements.
  • The typical power consumption of the LTC1296 is around 1.5mA to 2.5mA, depending on the operating mode and clock frequency. However, this can vary depending on the specific application and operating conditions. Consult the datasheet and application notes for specific power consumption estimates.
