LTC1326CS8-2.5#PBF - Analog Devices

Description: LTC1326CS8-2.5#PBF, Processor Supervisor 3-channel 2.5 V, 3.3 V 8-Pin SOIC

Download LTC1326CS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

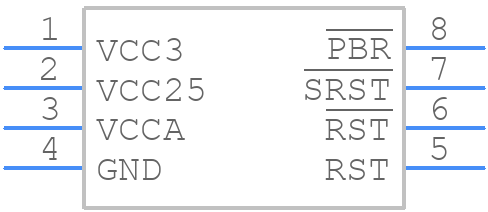

LTC1326CS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1326CS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8(SOIC)
click to zoom
3D Models
LTC1326CS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - S8(SOIC)
click to zoom

LTC1326CS8-2.5#PBF Details

  • Manufacturer Part Number:

    LTC1326CS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2.363; MANUAL PUSH-BUTTON RESET INPUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.363V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1326CS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1326CS8-2.5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure proper bypassing, place a 10uF ceramic capacitor between the VCC pin and the analog ground, and a 0.1uF ceramic capacitor between the VCC pin and the digital ground. Additionally, use a 1uF tantalum capacitor between the VCC pin and the analog ground for further filtering.
  • The maximum allowed voltage on the REF pin of the LTC1326CS8-2.5#PBF is 2.7V. Exceeding this voltage may damage the device.
  • Yes, the LTC1326CS8-2.5#PBF can be used in a system with a 3.3V power supply. However, the output voltage range will be limited to 2.5V, and the device's performance may be affected.
  • To troubleshoot issues with the LTC1326CS8-2.5#PBF, start by checking the PCB layout and ensuring that the device is properly bypassed. Next, verify that the input and output capacitors are properly sized and placed. If the issue persists, check the power supply voltage and noise levels, and ensure that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1326CS8-2.5#PBF Overview

Use the download button to access the LTC1326CS8-2.5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC13, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
