LTC1326CS8-2.5#TRPBF - Analog Devices

Description: Micropower Precision Triple Supply Monitor

Download LTC1326CS8-2.5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

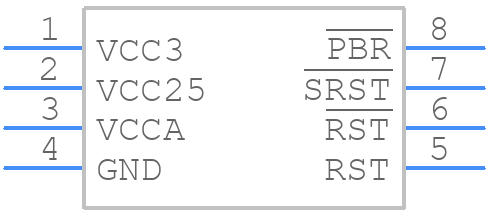

LTC1326CS8-2.5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1326CS8-2.5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LTC1326CS8-2.5#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LTC1326CS8-2.5#TRPBF Details

  • Manufacturer Part Number:

    LTC1326CS8-2.5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2.363; MANUAL PUSH-BUTTON RESET INPUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.363V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1326CS8-2.5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1326CS8-2.5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is recommended. Refer to the Analog Devices application note AN102 for more details.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, use a low-ESR output capacitor (e.g., X5R or X7R ceramic) and a low-inductance output filter (e.g., a ferrite bead). Avoid using a capacitor with a high ESL (equivalent series inductance) on the output.
  • The maximum input voltage that can be applied to the LTC1326CS8-2.5 is 12V. Exceeding this voltage can cause damage to the device. If a higher input voltage is required, consider using a voltage regulator or a voltage divider to reduce the input voltage.
  • The LTC1326CS8-2.5 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. If your application requires operation above 125°C, consider using a different device or implementing thermal management techniques to reduce the device temperature.
  • To troubleshoot issues with the LTC1326CS8-2.5, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the PCB layout meets the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting tips.
