LTC1334CNW#PBF - Analog Devices

Description: LTC1334CNW#PBF, Multiprotocol Transceiver, RS-485, RS-232 2/4-TX 2/4-RX 4-TRX, 28-Pin PDIP W

Download LTC1334CNW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

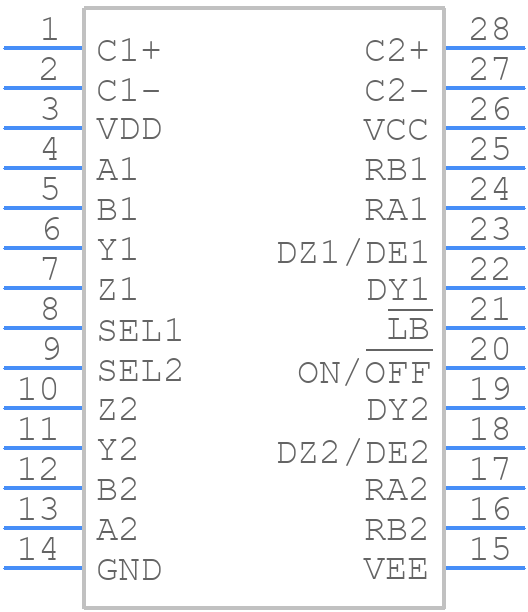

LTC1334CNW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

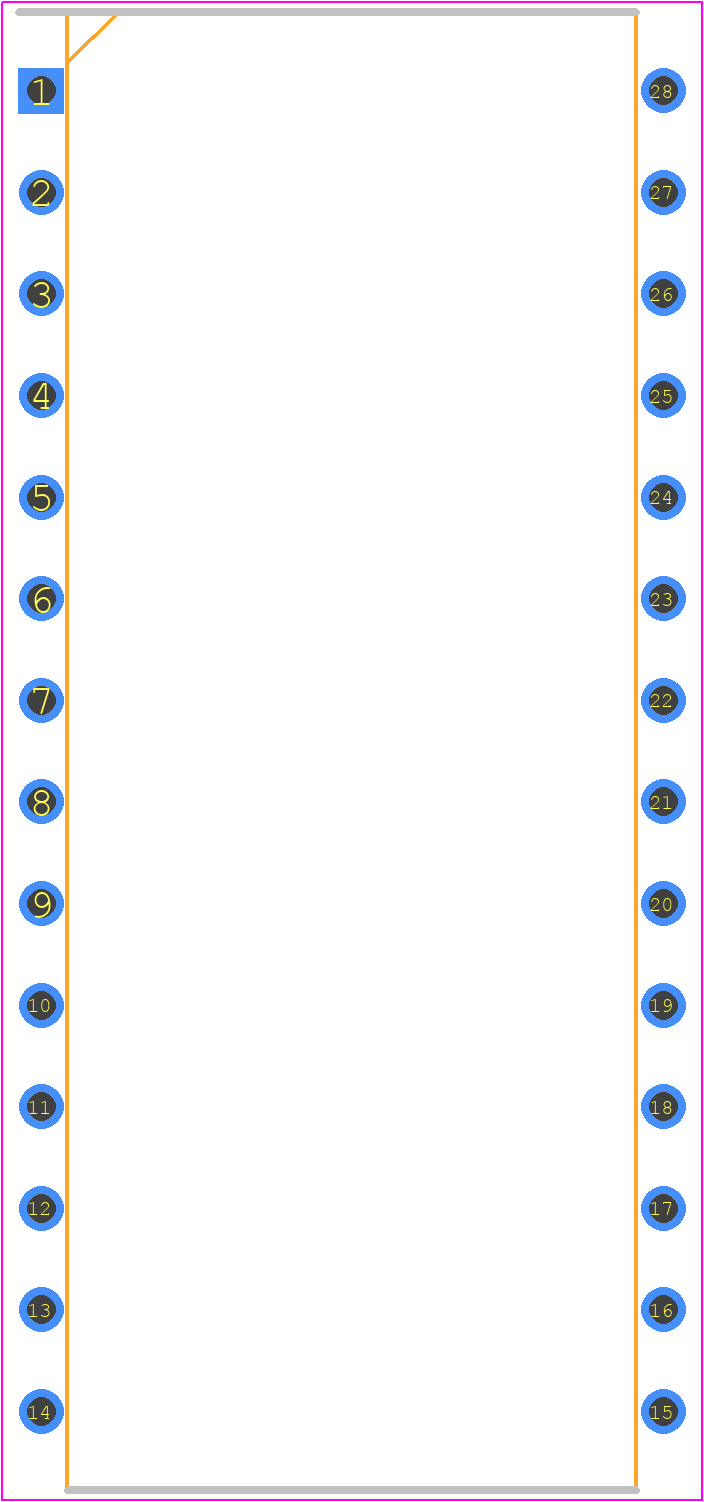

LTC1334CNW#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NW Package 28-Lead PDIP (Wide 0.600)
click to zoom
3D Models
LTC1334CNW#PBF - Analog Devices - 3D model - Dual-In-Line Packages - NW Package 28-Lead PDIP (Wide 0.600)
click to zoom

LTC1334CNW#PBF Details

  • Manufacturer Part Number:

    LTC1334CNW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.600 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1520

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CONFIGURABLE INTERFACE STANDARDS

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; EIA-422; EIA-485; EIA-562

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.957 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    4.318 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    4000 ns

  • Width:

    15.24 mm

LTC1334CNW#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC1334CNW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to place the capacitors as close as possible to the IC and to use a star-ground configuration to reduce noise and electromagnetic interference (EMI).
  • To ensure the LTC1334CNW#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, it's recommended to monitor the device's temperature using a thermocouple or thermal sensor and to implement thermal shutdown or warning mechanisms if the temperature exceeds the specified range.
  • Not using the recommended bypass capacitors for the LTC1334CNW#PBF can lead to reduced performance, increased noise, and potential instability. The bypass capacitors help to filter out high-frequency noise and provide a low-impedance path to ground, ensuring that the IC operates within its specified parameters. Omitting or using inadequate bypass capacitors can result in reduced accuracy, increased jitter, and potential oscillations.
  • To troubleshoot issues with the LTC1334CNW#PBF, start by verifying the power supply voltages, input signals, and output loads. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltages and waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques specific to the LTC1334CNW#PBF.
  • Exceeding the maximum ratings for the LTC1334CNW#PBF can result in permanent damage to the device, reduced reliability, and potentially catastrophic failure. Exceeding the maximum input voltage can cause the device to latch up or experience electrical overstress, while exceeding the maximum output current can cause the device to overheat or experience thermal runaway. It's essential to ensure that the device operates within its specified ratings and to implement protective measures, such as overvoltage protection and current limiting, to prevent damage or failure.
