LTC1343IGW#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1343IGW#PBF - IC, TXRX, S/W -SELECTABLE, 44SSOP

Download LTC1343IGW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

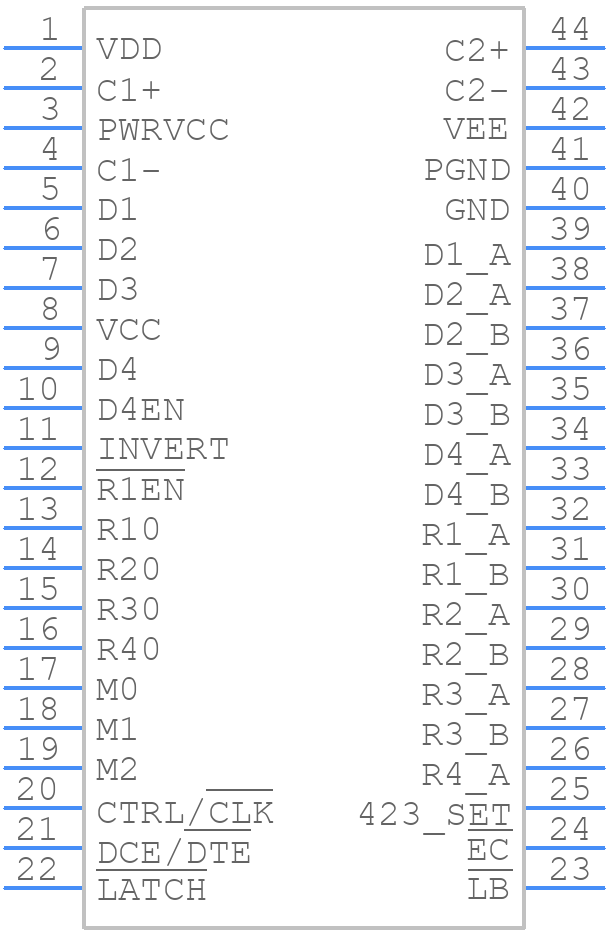

LTC1343IGW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

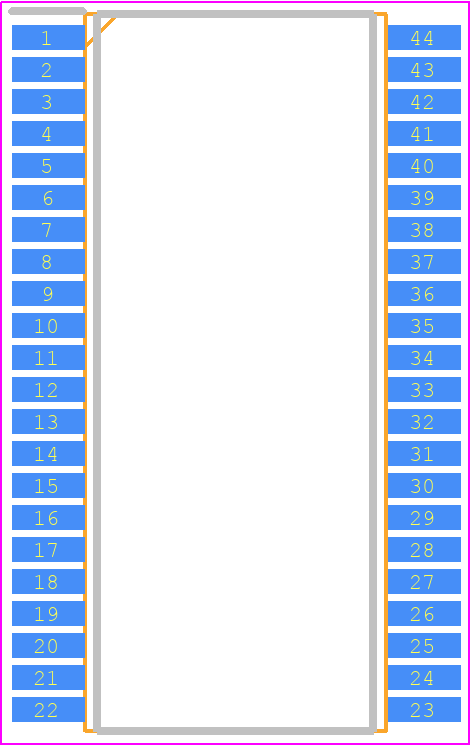

LTC1343IGW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide 0.300)
click to zoom
3D Models
LTC1343IGW#PBF - Analog Devices - 3D model - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide 0.300)
click to zoom

LTC1343IGW#PBF Details

  • Manufacturer Part Number:

    LTC1343IGW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1642 (GW44)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.35; V.36; X.21; EIA-499; EIA-530; EIA-530-A

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP44,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    800 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2.641 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2500 ns

  • Width:

    7.5 mm

LTC1343IGW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1343IGW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC1343IGW#PBF requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The LTC1343IGW#PBF can achieve data transfer rates of up to 100 Mbps in synchronous mode and up to 1 Mbps in asynchronous mode.
  • The LTC1343IGW#PBF can be configured for different communication protocols by setting the appropriate mode pins and using the correct protocol-specific commands. For example, to configure the device for SPI mode, the MODE pin should be tied high and the SCK pin should be connected to the SPI clock signal.
  • The LTC1343IGW#PBF has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to keep the device within the specified operating temperature range (-40°C to 85°C) and to provide adequate heat sinking and airflow.
