LTC1380IGN#PBF - Analog Devices

Description: Multiplexer Switch ICs SMBus 8/Ch Single-Ended Mux

Download LTC1380IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

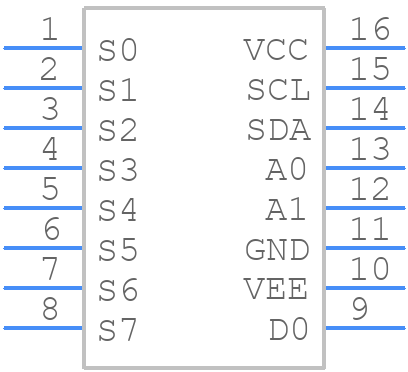

LTC1380IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1380IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom
3D Models
LTC1380IGN#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom

LTC1380IGN#PBF Details

  • Manufacturer Part Number:

    LTC1380IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    14 Ω

  • On-state Resistance-Max (Ron):

    70 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1200 ns

  • Switch-on Time-Max:

    1500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1380IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1380IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • The LTC1380IGN#PBF requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD).
  • The LTC1380IGN#PBF can support clock frequencies up to 20MHz, but the maximum frequency may vary depending on the specific application and layout. It's recommended to consult the datasheet and application notes for more information.
  • The LTC1380IGN#PBF can be configured for different conversion rates by adjusting the clock frequency and the number of bits per conversion. However, increasing the conversion rate may come at the cost of reduced accuracy and increased power consumption. Consult the datasheet and application notes for more information on configuring the device for specific conversion rates.
  • The LTC1380IGN#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device within a temperature range of -40°C to 85°C for reliable operation. Ensure good thermal design practices, such as using a heat sink and thermal interface material, to keep the device within the recommended temperature range.
