LTC1387CSW#PBF - Analog Devices

Description: LTC1387CSW#PBF, Multiprotocol Transceiver, RS-485, RS-232 1/2-TX 1/2-RX 2-TRX, 20-Pin SOIC W

Download LTC1387CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

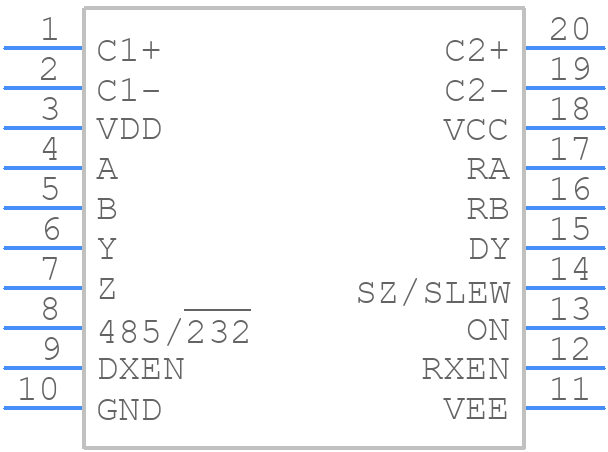

LTC1387CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1387CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW20
click to zoom
3D Models
LTC1387CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW20
click to zoom

LTC1387CSW#PBF Details

  • Manufacturer Part Number:

    LTC1387CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; EIA-422; EIA-485; EIA-562

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6000 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    4000 ns

  • Width:

    7.5 mm

LTC1387CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1387CSW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • The LTC1387CSW#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. Power sequencing is not critical, but it's recommended to power up the analog supply (VCC) before the digital supply (VDD) to prevent unwanted current flow.
  • The LTC1387CSW#PBF can achieve a maximum data transfer rate of 100 kbps, making it suitable for low-to-medium speed applications such as industrial control systems, medical devices, and consumer electronics.
  • To implement a reliable and efficient isolation barrier using the LTC1387CSW#PBF, it's recommended to use a proper PCB layout, ensure proper creepage and clearance distances, and use a suitable isolation voltage rating. Additionally, it's recommended to use a shielded cable or a twisted pair for the isolated side to minimize noise and EMI.
  • To mitigate EMI and RFI when using the LTC1387CSW#PBF, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke or ferrite bead on the isolated side, and ensure proper grounding and shielding of the PCB.
