LTC1391IGN#PBF - Analog Devices

Description: Analog Multiplexer Single 8:1 16-Pin SSOP N

Download LTC1391IGN#PBF Model

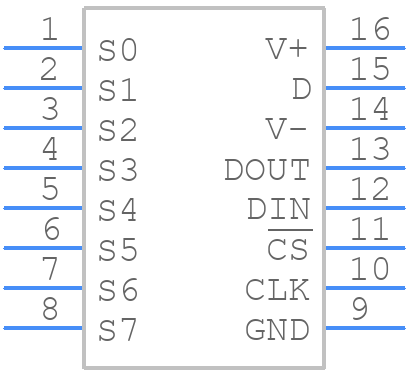

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1391IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1391IGN#PBF - Analog Devices  - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1391IGN#PBF Details

  • Manufacturer Part Number:

    LTC1391IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH 2.7 V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    200 ns

  • Switch-on Time-Max:

    400 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1391IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1391IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • The LTC1391IGN#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the VCC pin before the VIN pin, and ensuring that the VCC pin is stable before applying any input signals.
  • The maximum input signal frequency that the LTC1391IGN#PBF can handle is 100kHz, and it's recommended to use a low-pass filter or a band-pass filter to condition the input signal and remove any high-frequency noise or harmonics.
  • The LTC1391IGN#PBF does not require any calibration, as it is a self-calibrating device. However, it's recommended to follow the application note AN43 from Analog Devices Inc, which provides guidelines for optimizing the performance of the device in specific applications.
  • The typical settling time of the LTC1391IGN#PBF is 10μs, and it can affect the overall system performance by introducing latency or delay in the signal path. It's recommended to consider the settling time when designing the system and to ensure that it meets the required timing specifications.
