LTC1402CGN#PBF - Analog Devices

Description: LTC1402CGN#PBF, 12 bit ADC Differential, SPI, 16-Pin SSOP N

Download LTC1402CGN#PBF Model

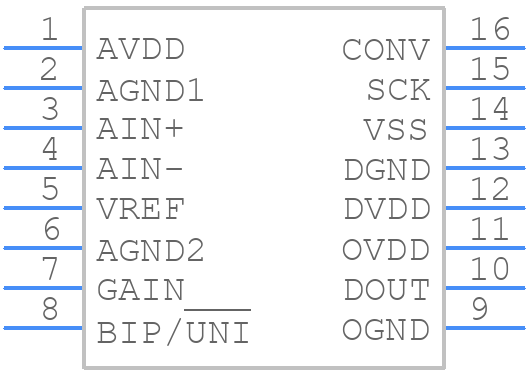

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1402CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)_1
click to zoom
3D Models
LTC1402CGN#PBF - Analog Devices  - 3D model - Small Outline Packages - GN(DFN)_1
click to zoom

LTC1402CGN#PBF Details

  • Manufacturer Part Number:

    LTC1402CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    6.36 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1402CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1402CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and shielded.
  • The LTC1402CGN#PBF requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the analog input signals are stable.
  • The maximum clock frequency for the LTC1402CGN#PBF is 20MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise and fall time of less than 10ns. Additionally, the clock signal should be synchronized with the analog input signals to ensure proper sampling.
  • The digital output data from the LTC1402CGN#PBF is in a 12-bit, two's complement format, and it's output on a 12-bit parallel bus. The output data is valid on the rising edge of the clock signal, and it's recommended to use a FIFO or a buffer to handle the output data to ensure it's not lost or corrupted.
  • The typical power consumption of the LTC1402CGN#PBF is around 30mW, and it's dependent on the clock frequency and the analog input signal levels. There is a shutdown mode available that reduces the power consumption to less than 1mW, but it's not recommended to use this mode during normal operation.
