LTC1406CGN#PBF - Analog Devices

Description: IC ADC 8BIT PIPELINED 24SSOP

Download LTC1406CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

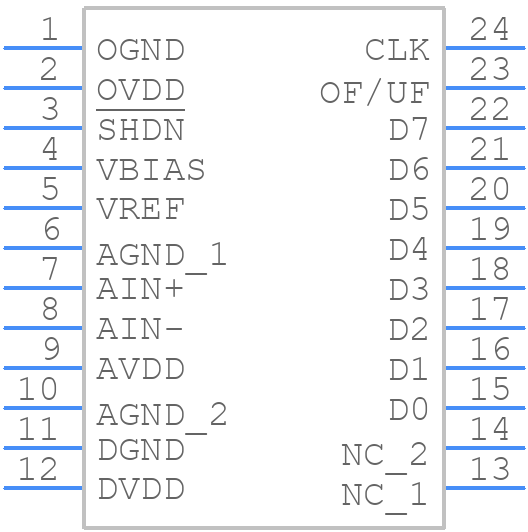

Symbol
LTC1406CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1406CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Plastic SSOP (Narrow 0.150)
click to zoom
3D Models
LTC1406CGN#PBF - Analog Devices - 3D model - Small Outline Packages - 24-Lead Plastic SSOP (Narrow 0.150)
click to zoom

LTC1406CGN#PBF Details

  • Manufacturer Part Number:

    LTC1406CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1641 (GN24)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    333 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1406CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1406CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and shielded.
  • The LTC1406CGN#PBF requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the analog signal sources are stable.
  • The maximum clock frequency for the LTC1406CGN#PBF is 50MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • The LTC1406CGN#PBF outputs 12-bit or 14-bit digital data in a serial format. The output data can be handled using a microcontroller or an FPGA, and the data format can be configured using the device's control pins.
  • The typical conversion time for the LTC1406CGN#PBF is 1.5μs for 12-bit mode and 2.5μs for 14-bit mode. The conversion time affects the overall system performance by determining the maximum sampling rate and the latency of the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1406CGN#PBF Overview

Use the download button to access the LTC1406CGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Analog to Digital Converters
