LTC1407IMSE#PBF - Analog Devices

Description: Serial 12-Bit/14-Bit, 3Msps Simultaneous Sampling ADCs with Shutdown 4V,–40°C to 85°C

Download LTC1407IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

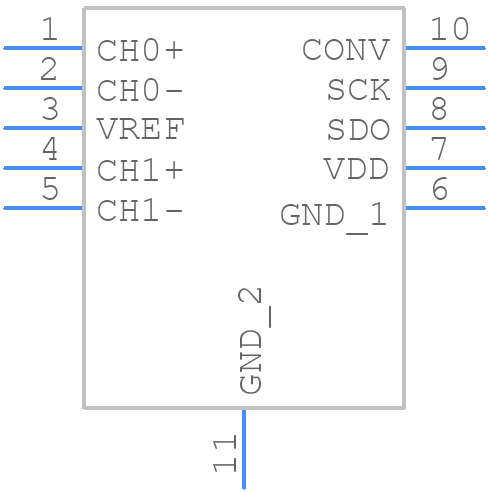

LTC1407IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1407IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - EXPOSED PAD MINI_SOIC
click to zoom
3D Models
LTC1407IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - EXPOSED PAD MINI_SOIC
click to zoom

LTC1407IMSE#PBF Details

  • Manufacturer Part Number:

    LTC1407IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC1407IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1407 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • To ensure accurate ADC conversion results, it's essential to provide a clean and stable power supply, minimize noise and interference on the analog input signals, and use a high-quality external reference voltage source if required. Additionally, proper PCB layout and grounding techniques can help reduce errors.
  • The maximum sampling rate of the LTC1407 is 1.25 MSPS (million samples per second). However, this rate may vary depending on the specific application, clock frequency, and system design.
  • Yes, the LTC1407 can be used in multi-channel applications. The device has a serial interface that allows it to be connected to a microcontroller or DSP, making it suitable for multi-channel data acquisition systems.
  • The LTC1407 outputs 14-bit digital data in a serial format. The data can be handled using a microcontroller or DSP, which can process the data and perform further calculations or transmit it to a host system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1407IMSE#PBF Overview

Use the download button to access the LTC1407IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
