LTC1410CSW#PBF - Analog Devices

Description: LTC1410CSW#PBF, 12 bit ADC Differential,, Parallel, 28-Pin SOIC W

Download LTC1410CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

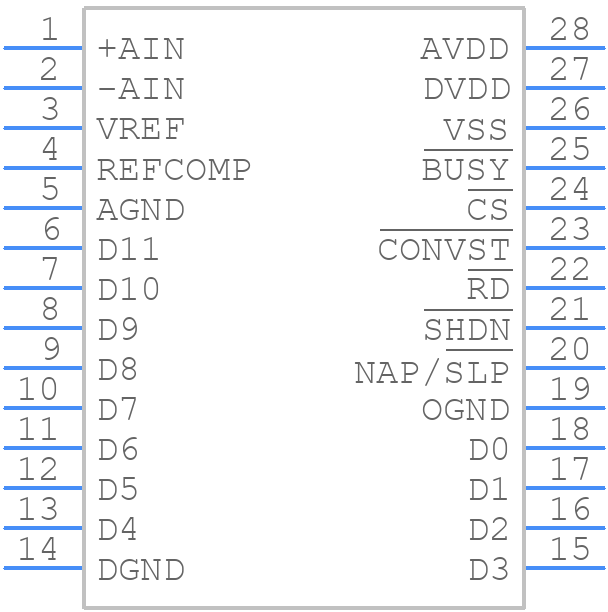

Symbol
LTC1410CSW#PBF - Analog Devices - PCB symbol
click to zoom

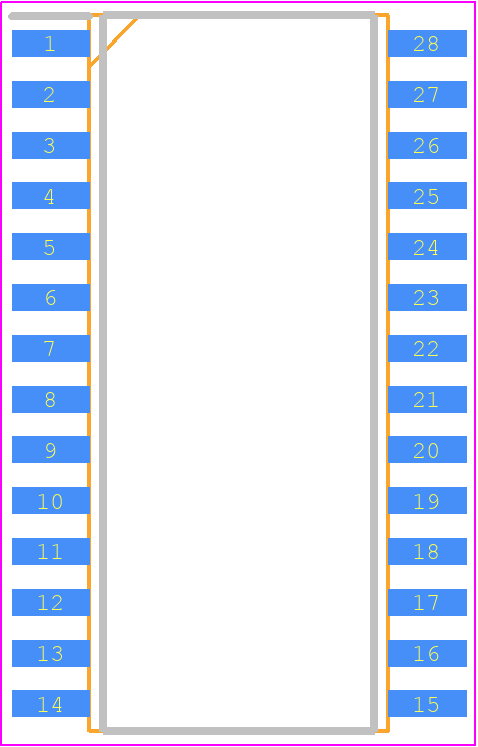

PCB Footprints
LTC1410CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW28
click to zoom
3D Models
LTC1410CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW28
click to zoom

LTC1410CSW#PBF Details

  • Manufacturer Part Number:

    LTC1410CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1620 (SW28)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC1410CSW#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC1410CSW involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To optimize the performance of the LTC1410CSW in noisy environments, it's recommended to use a shielded enclosure, keep the ADC away from noise sources, and use a low-pass filter or a ferrite bead on the analog input pins. Additionally, using a differential input configuration and a common-mode filter can help to reject common-mode noise.
  • The maximum sampling rate that can be achieved with the LTC1410CSW is 1.25Msps, but this can be limited by the system's clock frequency, the analog input bandwidth, and the digital output data rate. It's recommended to consult the datasheet and application notes for more information on achieving high-speed sampling with the LTC1410CSW.
  • The LTC1410CSW does not require calibration, as it has an internal calibration circuit that ensures accurate performance over temperature and voltage. However, it's recommended to perform a system-level calibration to account for any external component tolerances and system-level errors.
  • The power consumption of the LTC1410CSW is typically around 15mW at 1.25Msps, but this can be reduced by using a lower clock frequency, reducing the analog input bandwidth, or using the device's power-down mode. Additionally, using a low-power microcontroller and optimizing the system's power management can help to reduce overall system power consumption.
