LTC1416IG#PBF - Analog Devices

Description: Low Power 14-Bit, 400ksps Sampling ADC

Download LTC1416IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

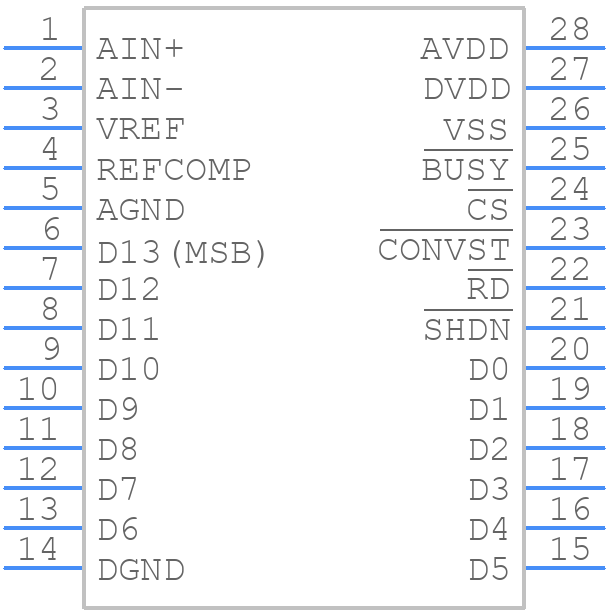

Symbol
LTC1416IG#PBF - Analog Devices - PCB symbol
click to zoom

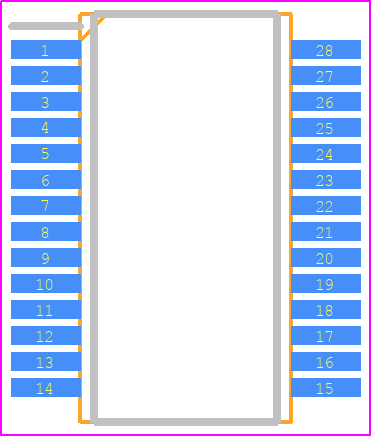

PCB Footprints
LTC1416IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom
3D Models
LTC1416IG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom

LTC1416IG#PBF Details

  • Manufacturer Part Number:

    LTC1416IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    2.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1416IG#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC1416IG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin from the analog input pins.
  • The LTC1416IG#PBF requires a calibration process to ensure accurate conversions. This involves writing the correct calibration coefficients to the device's internal registers. The datasheet provides a detailed calibration procedure, and Analog Devices also provides a calibration software tool to simplify the process. Additionally, the device's configuration registers can be programmed to optimize performance for specific applications.
  • The LTC1416IG#PBF's analog input range is limited to 0V to VREF (typically 2.5V or 5V). If a wider input range is required, an external amplifier or attenuator can be used to condition the input signal. Additionally, the device's input range can be shifted by applying an offset voltage to the analog input pins.
  • The LTC1416IG#PBF has a power-on reset (POR) circuit that initializes the device's internal registers and calibration coefficients. To ensure proper initialization, the device's VCC pin should be powered up slowly (typically within 10ms) and the POR signal should be monitored to ensure that the device is fully initialized before starting conversions.
  • The LTC1416IG#PBF is sensitive to temperature and can be affected by thermal gradients. To ensure reliable operation, the device should be operated within its specified temperature range (-40°C to 85°C). Additionally, the device's thermal pad should be connected to a solid ground plane to dissipate heat, and the PCB should be designed to minimize thermal gradients.
