LTC1417CGN#PBF - Analog Devices

Description: Linear Technology LTC1417CGN#PBF, 14 bit Serial ADC, Differential Input, 16-Pin SSOP

Download LTC1417CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

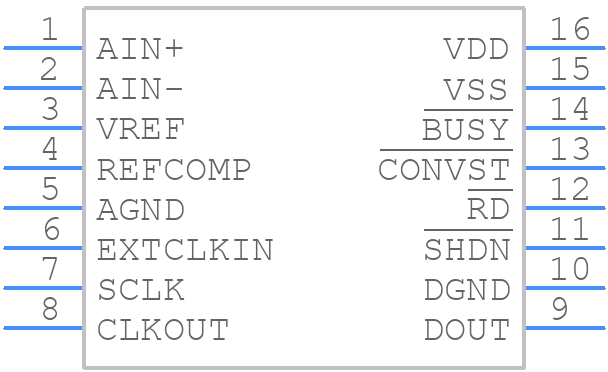

Symbol
LTC1417CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1417CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC1417CGN#PBF
click to zoom
3D Models
LTC1417CGN#PBF - Analog Devices - 3D model - Small Outline Packages - LTC1417CGN#PBF
click to zoom

LTC1417CGN#PBF Details

  • Manufacturer Part Number:

    LTC1417CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    2.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1417CGN#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC1417CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The LTC1417CGN#PBF requires a single 2.7V to 5.5V power supply. It's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the analog power supply is stable.
  • The maximum clock frequency for the LTC1417CGN#PBF is 50 MHz. The device requires a clock signal with a duty cycle of 40% to 60% and a rise and fall time of less than 5 ns.
  • The LTC1417CGN#PBF outputs 14-bit or 12-bit parallel digital data, depending on the mode of operation. The output data is in two's complement format, and the device provides a data ready (DRDY) signal to indicate when the data is valid.
  • The recommended operating temperature range for the LTC1417CGN#PBF is -40°C to 85°C. Temperature affects the device's performance, with increased temperature resulting in decreased accuracy and increased noise. It's recommended to operate the device within the specified temperature range for optimal performance.
