LTC1418AIG#TRPBF - Analog Devices

Description: 14 Bit Analog to Digital Converter 1 Input 1 SAR 28-SSOP , 5V , -40°C ~ 85°C

Download LTC1418AIG#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

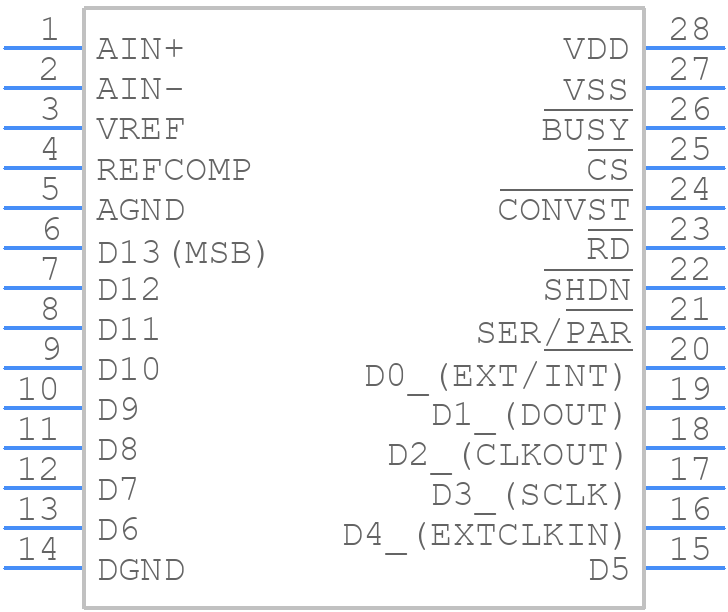

LTC1418AIG#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

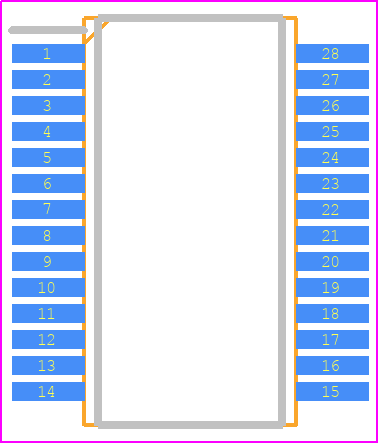

LTC1418AIG#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP_2026-1.6
click to zoom
3D Models
LTC1418AIG#TRPBF - Analog Devices - 3D model - Small Outline Packages - SSOP_2026-1.6
click to zoom

LTC1418AIG#TRPBF Details

  • Manufacturer Part Number:

    LTC1418AIG#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.55 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0732%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0014 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1418AIG#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1418AIG involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate conversion results, it's essential to follow proper PCB layout guidelines, use a low-noise power supply, and minimize electromagnetic interference (EMI) in the system. Additionally, the analog input signals should be properly filtered and buffered to prevent aliasing and noise.
  • The maximum sampling rate of the LTC1418AIG is 1.25Msps. As the sampling rate increases, the power consumption of the device also increases. At the maximum sampling rate, the power consumption is approximately 35mW.
  • The LTC1418AIG has a parallel interface that can be easily interfaced with a microcontroller or FPGA. The device requires a 3.3V or 5V power supply, and the digital output data is compatible with most microcontrollers and FPGAs. A simple interface circuit can be designed using the datasheet as a reference.
  • The LTC1418AIG has an operating temperature range of -40°C to 85°C. The device's performance may be affected by temperature variations, with the conversion accuracy and linearity potentially degrading at extreme temperatures. However, the device is designed to maintain its performance within the specified temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1418AIG#TRPBF Overview

Use the download button to access the LTC1418AIG#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
