LTC1419AIG#PBF - Analog Devices

Description: 14-Bit, 800ksps Sampling A/D Converter with Shutdown

Download LTC1419AIG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

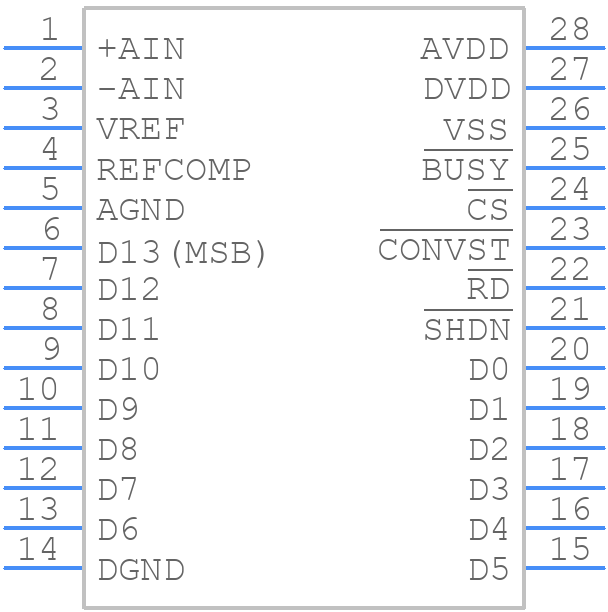

Symbol
LTC1419AIG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1419AIG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom
3D Models
LTC1419AIG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom

LTC1419AIG#PBF Details

  • Manufacturer Part Number:

    LTC1419AIG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    1.15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.8 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1419AIG#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1419AIG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • To ensure the LTC1419AIG#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be attached to the package if necessary. Additionally, the ambient temperature should be monitored to ensure it remains within the specified range.
  • Potential sources of error in the LTC1419AIG#PBF include noise, thermal drift, and component tolerances. These can be minimized by using a low-noise power supply, keeping the device away from high-frequency sources, and using high-precision external components. Additionally, the device should be calibrated regularly to ensure accuracy.
  • Yes, the LTC1419AIG#PBF can be used in a multi-channel application. This can be achieved by using multiple devices, each connected to a separate channel, or by using a single device with a multiplexer to switch between channels. In either case, it's essential to ensure that the device is properly synchronized and that the channels are properly isolated to prevent crosstalk.
  • To troubleshoot issues with the LTC1419AIG#PBF, start by verifying the power supply and clock signals. Check the input and output signals using an oscilloscope to ensure they are within the specified ranges. Also, check the device's configuration and programming to ensure they are correct. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices' support team if necessary.
