LTC1420CGN#PBF - Analog Devices

Description: 12Bit 10Msps Analog to Digital Converter Linear Technology LTC1420CGN#PBF, 12 bit Parallel ADC, Differential Input, 28-Pin SSOP

Download LTC1420CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

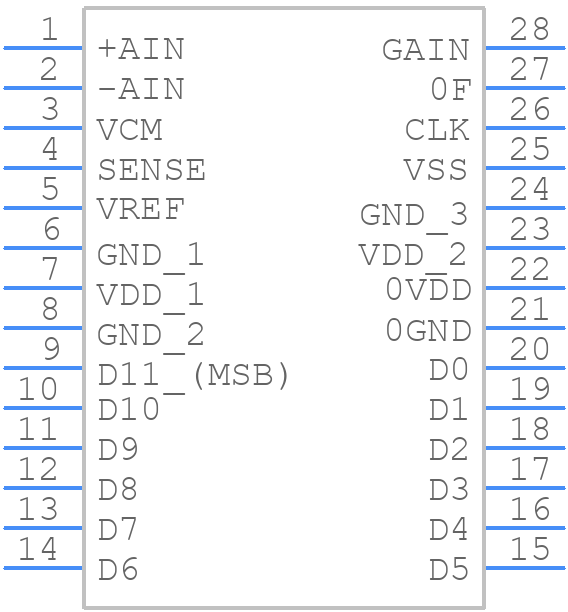

LTC1420CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1420CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN (28-Lead SSOP)
click to zoom
3D Models
LTC1420CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN (28-Lead SSOP)
click to zoom

LTC1420CGN#PBF Details

  • Manufacturer Part Number:

    LTC1420CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    0.0244 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.748 mm

  • Supply Current-Max:

    58 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1420CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1420CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from noise sources.
  • The LTC1420CGN#PBF is specified to operate from -40°C to 85°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating due to high ambient temperatures or high power dissipation, and consider using thermal interface materials or heat sinks if necessary.
  • The recommended input voltage range for the LTC1420CGN#PBF is 4.5V to 5.5V. Operating outside this range may affect the device's performance, including reduced accuracy, increased noise, and potential damage to the device. It's essential to ensure the input voltage is within the specified range to guarantee optimal performance.
  • To troubleshoot common issues with the LTC1420CGN#PBF, start by verifying the input voltage, clock frequency, and output loading. Check for noise sources, ensure proper PCB layout, and verify the device is operating within its specified temperature range. If issues persist, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
  • When selecting an external clock source for the LTC1420CGN#PBF, consider the clock frequency, jitter, and amplitude. The clock frequency should be within the specified range (typically 1MHz to 20MHz), and the jitter should be minimized to ensure accurate conversions. Additionally, ensure the clock amplitude is within the specified range (typically 2.5V to 5.5V) and that the clock source is stable and reliable.
