LTC1452CN8#PBF - Analog Devices

Description: LTC1452CN8#PBF, 12 bit-Bit DAC SPI, 8-Pin PDIP

Download LTC1452CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

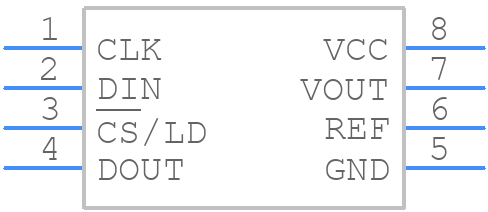

Symbol
LTC1452CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1452CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom
3D Models
LTC1452CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom

LTC1452CN8#PBF Details

  • Manufacturer Part Number:

    LTC1452CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.115 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1452CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1452CN8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer board with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage measurement, use a low-impedance voltage source, keep the input traces short and shielded, and avoid noise injection into the input pins. Also, use a high-quality voltage reference and ensure that the input voltage is within the specified range.
  • The maximum clock frequency that can be used with the LTC1452CN8 is 1.5MHz. However, the actual clock frequency may be limited by the specific application and the noise tolerance of the system.
  • The LTC1452CN8 is rated for operation up to 70°C, but it can be used in high-temperature environments with proper derating. However, the accuracy and reliability of the device may be affected at high temperatures, and additional thermal management may be required.
  • The LTC1452CN8 can be interfaced with a microcontroller using a 3-wire serial interface (SCK, SDI, and SDO). The microcontroller can send commands and data to the LTC1452CN8, and receive data from the device. A pull-up resistor is required on the SDO pin.
