LTC1477CS8#PBF - Analog Devices

Description: Linear Technology LTC1477CS8#PBF Intelligent Power Switch, High Side, 1A, 2.7 → 5.5V, 70mW, 8-Pin, SOIC

Download LTC1477CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

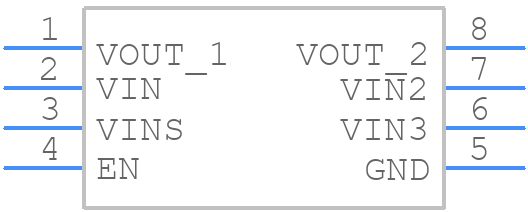

Symbol
LTC1477CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1477CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8(SOIC)
click to zoom
3D Models
LTC1477CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8(SOIC)
click to zoom

LTC1477CS8#PBF Details

  • Manufacturer Part Number:

    LTC1477CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1477CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1477CS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The LTC1477CS8 requires a clean and stable power supply. Use a high-quality voltage regulator, and decouple the power pins with 0.1uF and 10uF capacitors. Add a 10uF capacitor between the VCC and GND pins for additional filtering.
  • The maximum clock frequency for the LTC1477CS8 is 20MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • The LTC1477CS8 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or in high-power applications.
  • The recommended input signal range for the LTC1477CS8 is 0V to VCC-1.5V. Signals outside this range may not be accurately converted, and may cause the device to malfunction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1477CS8#PBF Overview

Use the download button to access the LTC1477CS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Peripheral Drivers
