LTC1514IS8-5#PBF - Analog Devices

Description: S8 Package 8-Lead Plastic Small Outline (Narrow 0.150) (LTC DWG # 05-08-1610)

Download LTC1514IS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

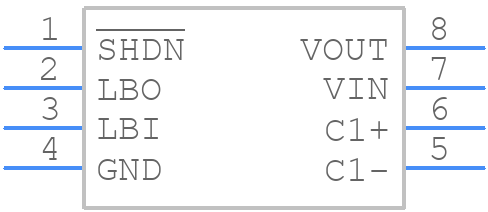

Symbol
LTC1514IS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1514IS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic SOIC*
click to zoom
3D Models
LTC1514IS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic SOIC*
click to zoom

LTC1514IS8-5#PBF Details

  • Manufacturer Part Number:

    LTC1514IS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    4.8 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    800 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

LTC1514IS8-5#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1514IS8-5#PBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a four-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the LTC1514IS8-5#PBF is properly powered and bypassed, it's recommended to use a high-quality power supply with low noise and ripple, and to place a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor between the VIN pin and the GND pin. Additionally, it's recommended to place a 0.1uF ceramic capacitor between the VCC pin and the GND pin.
  • The maximum operating temperature range for the LTC1514IS8-5#PBF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot common issues with the LTC1514IS8-5#PBF, such as oscillation or instability, it's recommended to check the power supply voltage and noise, ensure proper bypassing and decoupling, and verify that the input and output capacitors are properly sized and placed. Additionally, it's recommended to use a scope to measure the output voltage and current, and to check for any signs of oscillation or instability.
  • Yes, the LTC1514IS8-5#PBF can be used in a high-reliability or high-availability application. The device is designed to meet the requirements of high-reliability applications, and it's manufactured using a robust and reliable process. However, it's recommended to follow proper design and manufacturing practices, and to perform thorough testing and validation to ensure the device meets the requirements of the specific application.
