LTC1562IG#PBF - Analog Devices

Description: Active Filters Active RC Quad Universal Filter

Download LTC1562IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

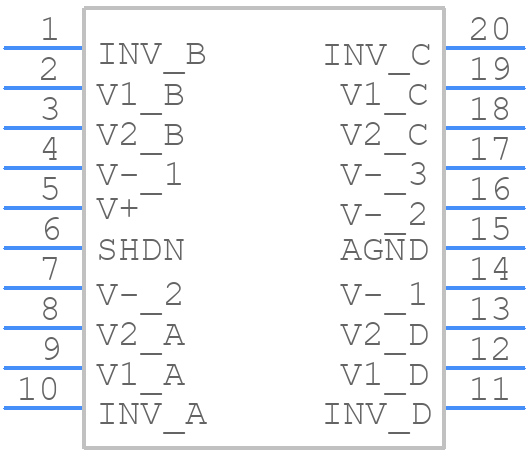

Symbol
LTC1562IG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1562IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC1562IG#PBF
click to zoom
3D Models
LTC1562IG#PBF - Analog Devices - 3D model - Small Outline Packages - LTC1562IG#PBF
click to zoom

LTC1562IG#PBF Details

  • Manufacturer Part Number:

    LTC1562IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1640 (G20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    CONTINUOUS TIME FILTER

  • Center or Cutoff Freq Rng-Max:

    150 kHz

  • Center or Cutoff Freq Rng-Min:

    10 kHz

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5 V

  • Neg Supply Voltage-Min (Vsup):

    -2.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    4 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    5.3 mm

LTC1562IG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1562IG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1562IG#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirement is to power up the VCC pin before the analog input signals, and to ensure that the VCC pin is stable before applying the analog input signals.
  • The maximum clock frequency for the LTC1562IG#PBF is 50 MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise/fall time of less than 5 ns. Additionally, the clock signal should be clean and free of noise to ensure optimal performance.
  • To optimize the performance of the LTC1562IG#PBF, it's recommended to use a low-noise power supply, to keep the analog input signals away from digital signals, and to use a low-pass filter at the output to reduce noise and distortion. Additionally, it's recommended to use a high-quality clock signal and to minimize the length of the input and output traces.
  • The LTC1562IG#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. To ensure reliable operation over temperature, it's recommended to use a heat sink or a thermal pad, and to keep the device away from heat sources.
