A good PCB layout for the LTC1563-3CGN involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
To optimize the performance of the LTC1563-3CGN in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
The maximum power dissipation of the LTC1563-3CGN is 1.4W. However, this can be reduced by using a heat sink or a thermal pad to dissipate heat.
The LTC1563-3CGN is rated for operation from -40°C to 85°C. However, the device's performance may degrade at high temperatures. It's recommended to derate the device's power dissipation and use a heat sink or thermal pad to ensure reliable operation.
To troubleshoot issues with the LTC1563-3CGN, check the power supply voltage, input and output signals, and ground connections. Use an oscilloscope to verify the signal integrity and check for noise or distortion. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC1563-3CGN#PBF Overview

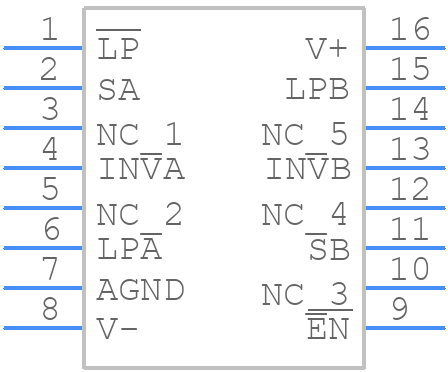

Use the download button to access the LTC1563-3CGN#PBF schematic symbol, PCB footprint, and 3D model.
