LTC1569CS8-6#PBF - Analog Devices

Description: Linear Technology LTC1569CS8-6#PBF, Active Filter, Low Pass Filter, 10th Order 64kHz, 8-Pin SOIC

Download LTC1569CS8-6#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

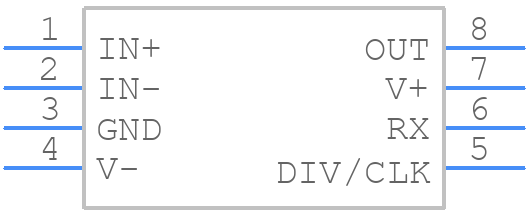

Symbol
LTC1569CS8-6#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1569CS8-6#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1569CS8-6#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1569CS8-6#PBF Details

  • Manufacturer Part Number:

    LTC1569CS8-6#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    CONTINUOUS TIME FILTER

  • Additional Feature:

    CAN ALSO OPERATE FROM A +/-5V SUPPLY

  • Center or Cutoff Freq Rng-Max:

    64 kHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    10 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9 mm

LTC1569CS8-6#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1569CS8-6 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the LTC1569CS8-6 in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum power dissipation of the LTC1569CS8-6 is 1.4W. However, this can be reduced by using a heat sink or a thermal pad to improve heat dissipation.
  • The LTC1569CS8-6 is rated for operation from -40°C to 85°C. While it can operate at higher temperatures, the performance may degrade, and the reliability may be affected. It's recommended to use a heat sink or a thermal pad to keep the junction temperature below 125°C.
  • To troubleshoot issues with the LTC1569CS8-6, start by checking the power supply voltage, input signal, and output signal. Use an oscilloscope to check for noise, distortion, or other anomalies. Check the PCB layout and ensure that it meets the recommended layout guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1569CS8-6#PBF Overview

Use the download button to access the LTC1569CS8-6#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC15, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
