LTC1598CG#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1598CG#PBF - IC, ADC, 12BIT, 8 CH, 24SSOP

Download LTC1598CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

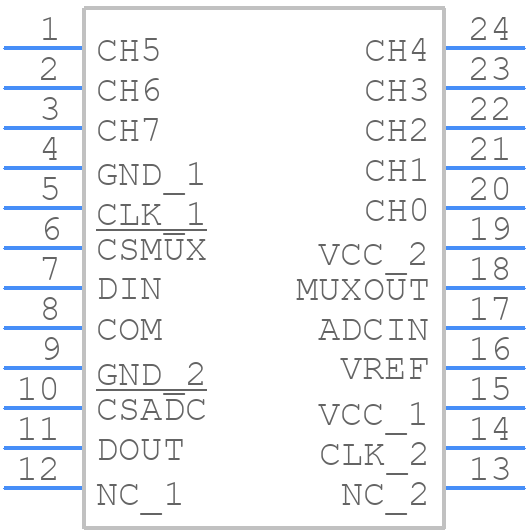

LTC1598CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1598CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Plastic SSOP
click to zoom
3D Models
LTC1598CG#PBF - Analog Devices - 3D model - Small Outline Packages - 24-Lead Plastic SSOP
click to zoom

LTC1598CG#PBF Details

  • Manufacturer Part Number:

    LTC1598CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1640 (G24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.55 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Linearity Error-Max (EL):

    0.0732%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0014 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1598CG#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1598CG involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended.
  • To optimize the performance of the LTC1598CG, ensure that the input and output impedance are matched, use a low-ESR output capacitor, and minimize the PCB trace inductance. Additionally, use a low-noise power supply and ensure that the device is operated within its recommended operating conditions.
  • The maximum operating temperature range for the LTC1598CG is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage accuracy may be affected.
  • Yes, the LTC1598CG is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of these applications. However, additional testing and qualification may be required for specific applications.
  • To troubleshoot issues with the LTC1598CG, start by verifying that the device is properly powered and that the input and output voltages are within the recommended range. Check for any signs of overheating, and ensure that the device is not exposed to excessive noise or EMI. Use an oscilloscope to verify the output voltage and check for any signs of oscillation or instability.
