LTC1605ACG#TRPBF - Analog Devices

Description: 16 Bit Analog to Digital Converter 1 Input 1 SAR Voltage - Supply, Analog 5V 0°C ~ 70°C 28-SSOP

Download LTC1605ACG#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

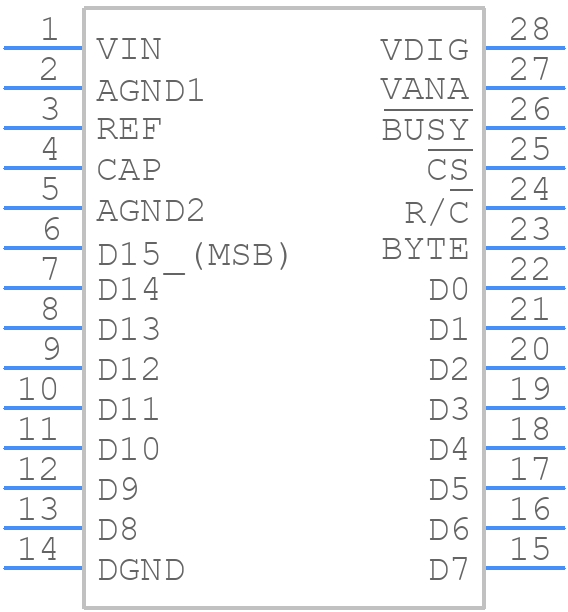

LTC1605ACG#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1605ACG#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC1605ACG#TRPBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom

LTC1605ACG#TRPBF Details

  • Manufacturer Part Number:

    LTC1605ACG#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1605ACG#TRPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC1605CG is to use a 4-layer board with a solid ground plane on the bottom layer, a power plane on the internal layer, and signal layer on the top layer. This helps to minimize noise and ensure proper operation of the device.
  • To ensure accurate temperature measurements with the LTC1605CG, make sure to use a thermocouple with a high accuracy rating, and calibrate the system by measuring the thermocouple output voltage at multiple points. Also, ensure that the thermocouple is properly connected to the LTC1605CG and that the device is properly configured for the type of thermocouple being used.
  • The maximum cable length that can be used with the LTC1605CG depends on the type of cable and the frequency of the signal. As a general rule, the maximum cable length should not exceed 10 feet (3 meters) to ensure reliable operation. If longer cable lengths are required, consider using a shielded cable and a signal repeater or amplifier.
  • To troubleshoot issues with the LTC1605CG, start by checking the power supply voltage and ensuring that it is within the recommended range. Next, check the thermocouple connection and ensure that it is properly connected to the device. Also, check the device configuration and ensure that it is properly set up for the type of thermocouple being used. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the LTC1605CG can be used with different types of thermocouples, including J, K, T, and E types. However, the device must be properly configured for the specific type of thermocouple being used, and the thermocouple output voltage must be within the recommended range of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1605ACG#TRPBF Overview

Use the download button to access the LTC1605ACG#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
