A good PCB layout for the LTC1605 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
The LTC1605 requires a single 5V supply, and it's recommended to use a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power up the analog supply (VCC) before the digital supply (VDD).
The maximum clock frequency for the LTC1605 is 40MHz. The clock signal should be a clean, low-jitter signal with a 50% duty cycle. It's recommended to use a clock signal with a rise and fall time of less than 5ns.
To optimize the performance of the LTC1605, ensure a low-noise power supply, use a high-quality clock signal, and minimize digital noise coupling into the analog circuitry. Key factors that affect SNR and THD include the quality of the analog input signal, the clock frequency, and the analog supply voltage.
The main differences between the LTC1605 and other similar ADCs from Analog Devices are the sampling rate, resolution, and power consumption. The LTC1605 has a higher sampling rate (up to 1.25MS/s) and lower power consumption (35mW) compared to the LTC1606 (up to 500kS/s and 50mW). The LTC1609 has a higher resolution (16-bit) but lower sampling rate (up to 500kS/s) and higher power consumption (60mW).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC1605ACSW#PBF Overview

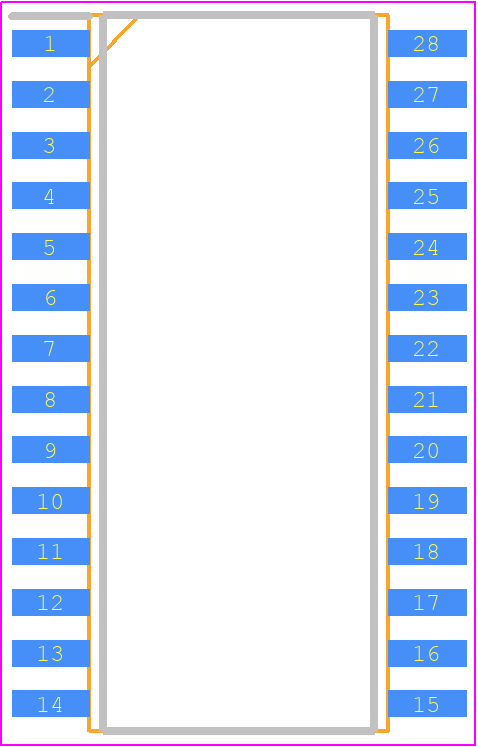

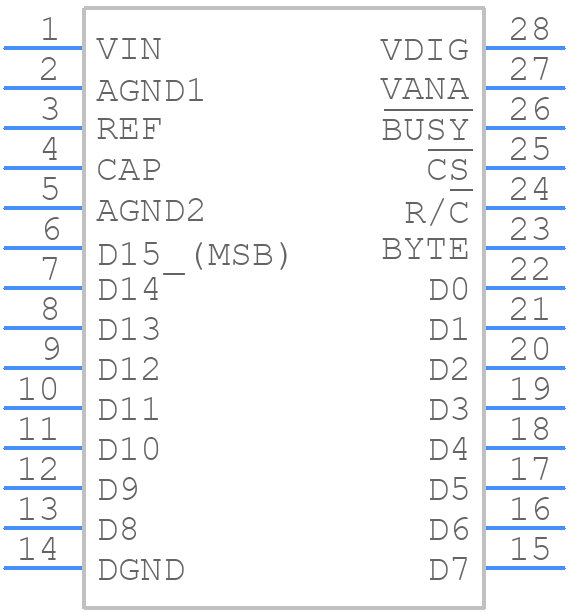

Use the download button to access the LTC1605ACSW#PBF schematic symbol, PCB footprint, and 3D model.
