LTC1605CN#PBF - Analog Devices

Description: LTC1605CN#PBF, 16 bit ADC, Parallel, 28-Pin PDIP

Download LTC1605CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

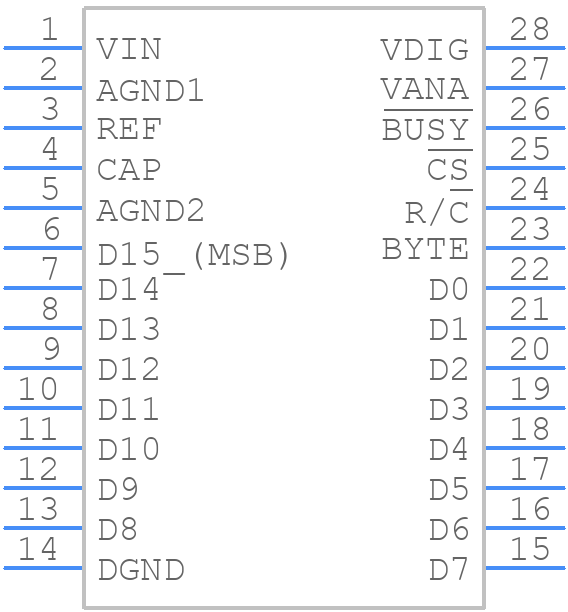

LTC1605CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

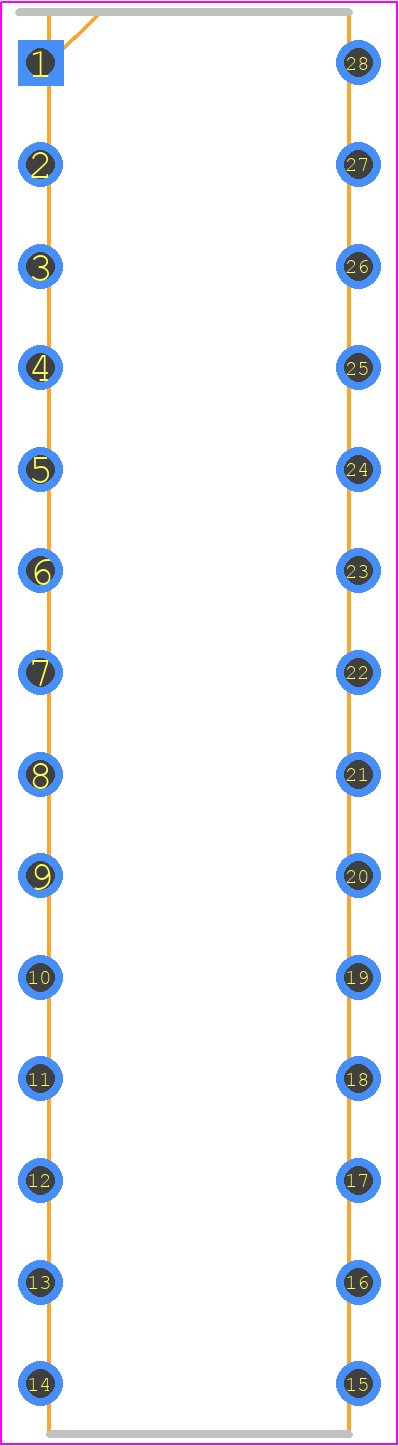

LTC1605CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - n28-1
click to zoom
3D Models
LTC1605CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - n28-1
click to zoom

LTC1605CN#PBF Details

  • Manufacturer Part Number:

    LTC1605CN#PBF

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T28

  • Length:

    35.56 mm

  • Linearity Error-Max (EL):

    0.00457%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LTC1605CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1605CN involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, keep the input and output traces short and away from noise sources.
  • To ensure accurate temperature measurement, make sure to use a thermocouple with a high accuracy rating, and calibrate the system at multiple temperature points. Also, ensure that the thermocouple is properly connected to the LTC1605CN and that the cold junction compensation is set correctly. Finally, use a high-quality analog-to-digital converter to digitize the temperature signal.
  • The maximum cable length for the thermocouple connection to the LTC1605CN depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate temperature measurement. If a longer cable is necessary, use a shielded cable and consider adding noise filtering or shielding to the thermocouple connection.
  • The LTC1605CN is designed to work with K-type thermocouples, but it can be used with other types of thermocouples with some modifications. However, the accuracy and range of the temperature measurement may be affected. Consult the datasheet and application notes for guidance on using the LTC1605CN with other thermocouple types.
  • To troubleshoot common issues with the LTC1605CN, start by checking the thermocouple connection and ensuring that it is properly connected to the device. Next, verify that the cold junction compensation is set correctly and that the analog-to-digital converter is functioning correctly. Check for noise sources in the system and ensure that the power supply is clean and stable. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1605CN#PBF Overview

Use the download button to access the LTC1605CN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
