LTC1643AL-1IGN#PBF - Analog Devices

Description: Hot Swap Controller LTC1643AL-1IGN#PBF Tensione negativo/positivo Dual , SSOP N, 16-Pin

Download LTC1643AL-1IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

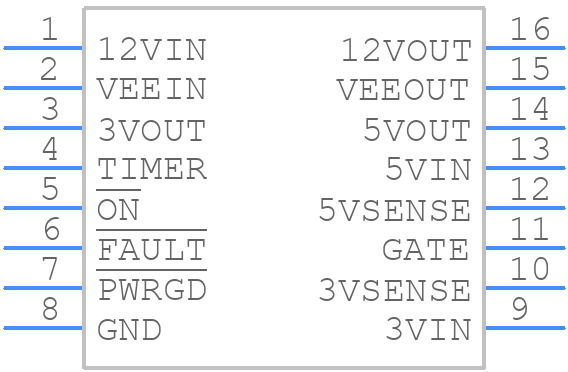

LTC1643AL-1IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1643AL-1IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)_1
click to zoom
3D Models
LTC1643AL-1IGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN(DFN)_1
click to zoom

LTC1643AL-1IGN#PBF Details

  • Manufacturer Part Number:

    LTC1643AL-1IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT ALSO REQUIRES A -12V SUPPLY

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    11.4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1643AL-1IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1643AL-1IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC1643AL-1IGN#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is within the recommended operating range.
  • The LTC1643AL-1IGN#PBF can support clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The LTC1643AL-1IGN#PBF can be programmed using a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C). The device can be programmed using a microcontroller or a dedicated programming device.
  • The LTC1643AL-1IGN#PBF has a maximum junction temperature of 150°C. To ensure proper heat dissipation, it's recommended to use a heat sink or a thermal pad, and to keep the device away from other heat sources. Additionally, it's recommended to use a PCB with a thermal relief pattern to improve heat dissipation.
