LTC1657CGN#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Parallel 16-B R2R uP DAC

Download LTC1657CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

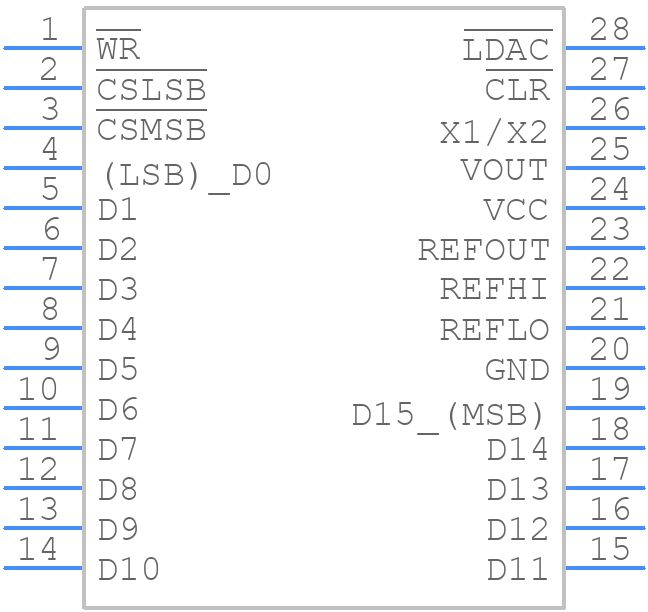

LTC1657CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1657CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1657CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1657CGN#PBF Details

  • Manufacturer Part Number:

    LTC1657CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1657CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1657CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the datasheet provides a recommended layout diagram that should be followed.
  • The LTC1657CGN#PBF requires a one-time calibration process to set the internal voltage reference. This can be done by connecting the CAL pin to a voltage source and then to GND, while monitoring the output voltage. The calibration process is described in detail in the datasheet. Additionally, Analog Devices provides a calibration software tool that can be used to simplify the process.
  • The LTC1657CGN#PBF has an operating temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • The LTC1657CGN#PBF is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Analog Devices offers a range of radiation-hardened and high-reliability devices that may be more suitable for these applications. It's recommended to consult with Analog Devices' sales team or a qualified reliability engineer to determine the best device for the specific application.
  • Troubleshooting issues with the LTC1657CGN#PBF involves a systematic approach to identify the root cause of the problem. This may involve checking the power supply, input and output connections, and PCB layout. Analog Devices provides a range of application notes and troubleshooting guides that can be used to identify and resolve common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1657CGN#PBF Overview

Use the download button to access the LTC1657CGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
