LTC1693-5CMS8#PBF - Analog Devices

Description: Driver 1.7A 1-OUT High Side Inv/Non-Inv 8-Pin MSOP Tube

Download LTC1693-5CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

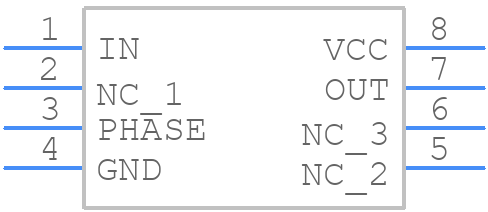

Symbol
LTC1693-5CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1693-5CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)-ren1
click to zoom
3D Models
LTC1693-5CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)-ren1
click to zoom

LTC1693-5CMS8#PBF Details

  • Manufacturer Part Number:

    LTC1693-5CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3 mm

LTC1693-5CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1693-5CMS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and power-down of the LTC1693-5CMS8, it's recommended to follow a controlled power-up sequence, where the input voltage is applied before the enable pin is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed.
  • The LTC1693-5CMS8 can drive capacitive loads up to 10nF. However, it's recommended to limit the capacitive load to 1nF or less to ensure stable operation.
  • To troubleshoot issues with the LTC1693-5CMS8, start by verifying the power supply voltage and ensuring that the device is properly powered up. Check the input and output voltages, and verify that the enable pin is properly asserted. If issues persist, check the PCB layout and ensure that it meets the recommended layout guidelines.
  • The LTC1693-5CMS8 is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures, and to ensure that the device is properly heat-sinked to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1693-5CMS8#PBF Overview

Use the download button to access the LTC1693-5CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
