LTC1693-5CMS8#TRPBF - Analog Devices

Description: Driver 1.7A 1-OUT High Side Inv/Non-Inv 8-Pin MSOP T/R

Download LTC1693-5CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

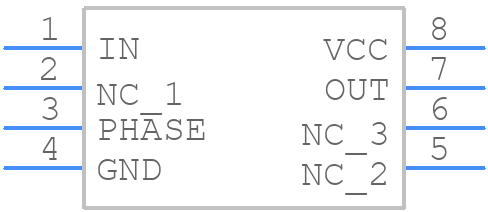

LTC1693-5CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1693-5CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP *
click to zoom
3D Models
LTC1693-5CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP *
click to zoom

LTC1693-5CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1693-5CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3 mm

LTC1693-5CMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1693-5CMS8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure accuracy, make sure to follow the recommended PCB layout, use a thermally conductive material for the thermal pad, and avoid any thermal gradients on the PCB. Also, calibrate the device using a precision temperature source and ensure that the device is operated within its specified temperature range.
  • The maximum cable length for the remote sense lines depends on the specific application and the noise environment. As a general rule, keep the sense lines as short as possible (less than 10 inches) and use twisted pair cables with a shield to minimize noise pickup. If longer cables are required, use a shielded cable with a drain wire and terminate the shield at the device end.
  • Yes, the LTC1693-5CMS8 is designed to operate in high-vibration environments. However, ensure that the device is properly mounted and secured to the PCB using a suitable adhesive or mechanical fastening method. Also, follow the recommended PCB layout and use a rigid PCB material to minimize flexure and vibration-induced noise.
  • During assembly, apply a thin layer of thermal interface material (TIM) to the thermal pad and ensure good contact with the heat sink or thermal plane. During rework, avoid applying excessive heat or force to the thermal pad, as this can damage the device. Use a thermal pad rework tool or a hot air gun with a low temperature setting to remove the device.
