LTC1726IS8-2.5#PBF - Analog Devices

Description: Linear Technology LTC1726IS8-2.5#PBF, Triple Processor Supervisor 2.5 → 3.3 V, WDT, Reset Input, 8-Pin SOIC

Download LTC1726IS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

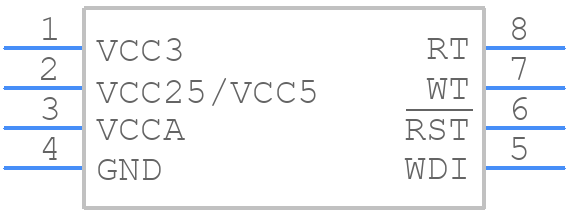

LTC1726IS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1726IS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1726IS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1726IS8-2.5#PBF Details

  • Manufacturer Part Number:

    LTC1726IS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.337V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1726IS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1726IS8-2.5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a voltage to the VREF pin and adjusting the output voltage to the desired level. It's also important to use a high-precision voltage reference and to minimize noise and interference during the calibration process.
  • The LTC1726IS8-2.5#PBF has a maximum junction temperature of 125°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. Additionally, consider using thermal simulation tools to model the thermal performance of the device in your specific application.
  • The LTC1726IS8-2.5#PBF is a high-reliability device that meets various industry standards, including automotive (AEC-Q100) and industrial (IEC 60601-1) requirements. For safety-critical applications, consult the device's safety manual and relevant industry standards, such as IEC 61508 or ISO 26262, to ensure compliance.
  • To troubleshoot common issues with the LTC1726IS8-2.5#PBF, start by verifying the input voltage, output voltage, and load current. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to observe the output voltage and identify any oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
