LTC1728ES5-3.3#TRMPBF - Analog Devices

Description: Linear Technology LTC1728ES5-3.3#TRMPBF, Triple Voltage Reference, 1.8 → 3.3 V, Reset Input, 5-Pin SOT-23

Download LTC1728ES5-3.3#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

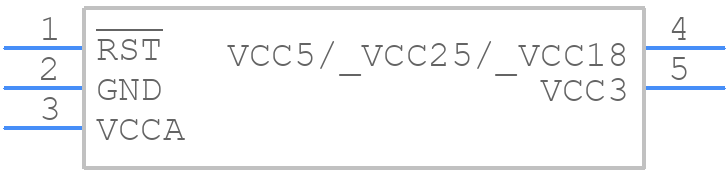

LTC1728ES5-3.3#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1728ES5-3.3#TRMPBF - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - 5 Lead Plastic TSOT-23+
click to zoom
3D Models
LTC1728ES5-3.3#TRMPBF - Analog Devices - 3D model - SOT23 (5-Pin) - 5 Lead Plastic TSOT-23+
click to zoom

LTC1728ES5-3.3#TRMPBF Details

  • Manufacturer Part Number:

    LTC1728ES5-3.3#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SC-74A, SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1635

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC1728ES5-3.3#TRMPBF Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines, but for optimal performance, it's recommended to place the LTC1728ES5-3.3#TRMPBF close to the power source, use a solid ground plane, and keep sensitive analog traces away from digital traces. Additionally, use a low-ESR capacitor for the output filter and ensure good thermal management.
  • To ensure stability, follow the datasheet's guidelines for output capacitance and ESR, and use a minimum output capacitance of 10uF. Also, ensure the input voltage is within the recommended range, and the output voltage is set correctly. Additionally, use a low-ESR capacitor for the output filter and avoid using ceramic capacitors with high ESL.
  • The maximum input voltage for the LTC1728ES5-3.3#TRMPBF is 15V, but it's recommended to operate within the recommended input voltage range of 3.5V to 12V for optimal performance and reliability.
  • The LTC1728ES5-3.3#TRMPBF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. Consult the datasheet for thermal derating guidelines.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current are within the recommended ranges. Check the PCB layout and component placement for any potential noise or interference issues. Use an oscilloscope to measure the output voltage and current, and consult the datasheet for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1728ES5-3.3#TRMPBF Overview

Use the download button to access the LTC1728ES5-3.3#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
