LTC1728ES5-5#TRMPBF - Analog Devices

Description: Linear Technology LTC1728ES5-5#TRMPBF, Triple Voltage Reference, 3.3 → 5 V, Reset Input, 5-Pin SOT-23

Download LTC1728ES5-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

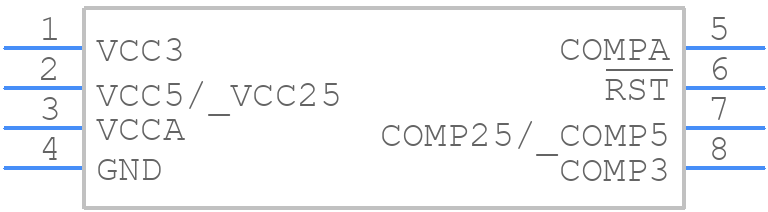

LTC1728ES5-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1728ES5-5#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - S8 Package
click to zoom
3D Models
LTC1728ES5-5#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - S8 Package
click to zoom

LTC1728ES5-5#TRMPBF Details

  • Manufacturer Part Number:

    LTC1728ES5-5#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SC-74A, SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1635

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC1728ES5-5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1728ES5-5 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the IC and the bypass capacitors. A 4-layer board with a dedicated power plane is recommended.
  • To ensure accuracy, use a high-precision voltage reference, keep the input voltage within the specified range, and minimize noise and interference on the input lines. Also, use a low-noise, low-impedance power supply and avoid using long wires or cables that can pick up noise.
  • The maximum allowed voltage on the input pins is 6V, which is the absolute maximum rating. However, for normal operation, the input voltage should be within the specified range of 2.7V to 5.5V.
  • To handle thermal considerations, ensure good airflow around the IC, use a heat sink if necessary, and avoid blocking the airflow around the IC. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • The recommended clock frequency for the LTC1728ES5-5 is between 1MHz and 4MHz. However, the clock frequency can be adjusted based on the specific application requirements, but it should not exceed the maximum specified frequency of 4MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1728ES5-5#TRMPBF Overview

Use the download button to access the LTC1728ES5-5#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
