LTC1733EMSE#TRPBF - Analog Devices

Description: Battery Management Monolithic Li-Ion Battery Charger

Download LTC1733EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

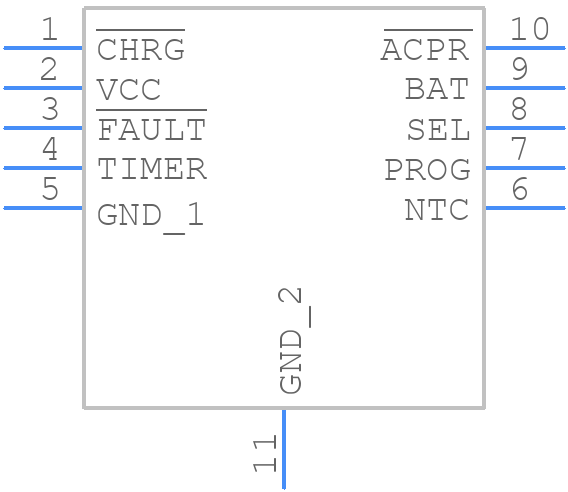

Symbol
LTC1733EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1733EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1663)
click to zoom
3D Models
LTC1733EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1663)
click to zoom

LTC1733EMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC1733EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1733EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1733EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. X5R or X7R ceramic capacitors are good options. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF.
  • The maximum ambient temperature range for the LTC1733EMSE is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider the thermal design and heat dissipation in your application.
  • The LTC1733EMSE is a commercial-grade device, but Analog Devices offers a high-reliability version, the LTC1733EMSE#TRPBF-H, which is designed for high-reliability and aerospace applications. This version has additional screening and testing to ensure higher reliability.
  • To troubleshoot issues with the LTC1733EMSE, start by checking the PCB layout, ensuring that the input and output capacitors are properly placed and connected. Verify that the input voltage is within the recommended range, and check for any signs of overheating. Use an oscilloscope to observe the output voltage and current, and consult the datasheet and application notes for guidance.
