LTC1760CFW#PBF - Analog Devices

Description: Linear Technology LTC1760CFW#PBF, Battery System Manager, ±2mA, 48-Pin TSSOP

Download LTC1760CFW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

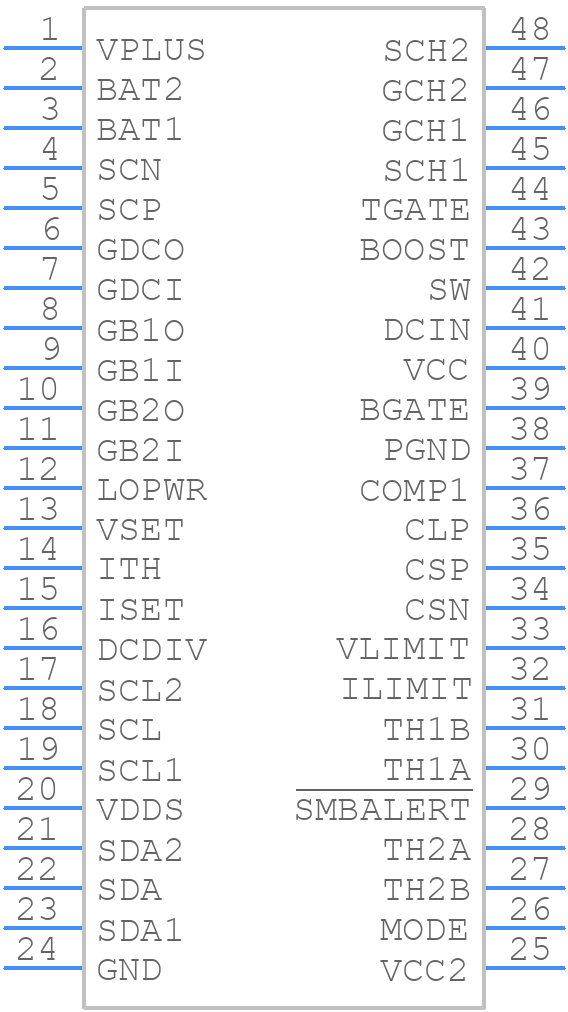

Symbol
LTC1760CFW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1760CFW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FW Package 48-Lead Plastic TSSOP (6.1mm)
click to zoom
3D Models
LTC1760CFW#PBF - Analog Devices - 3D model - Small Outline Packages - FW Package 48-Lead Plastic TSSOP (6.1mm)
click to zoom

LTC1760CFW#PBF Details

  • Manufacturer Part Number:

    LTC1760CFW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1651

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

LTC1760CFW#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1760CFW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, and to keep the analog and digital signals separate.
  • The LTC1760CFW#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the device in the following order: VCC, then VREF, and finally the input signals.
  • The LTC1760CFW#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance. Thermal considerations involve using a heat sink or a thermal pad, and ensuring good airflow around the device.
  • Common issues with the LTC1760CFW#PBF can be troubleshooted by checking the power supply, ensuring proper grounding and layout, and verifying the input signals. Additionally, checking the device's output for oscillations or inaccurate conversions can help identify the root cause of the issue.
  • The LTC1760CFW#PBF is designed to meet the required electromagnetic compatibility standards, and EMI and RFI considerations involve using a shielded enclosure, keeping the device away from high-frequency sources, and using EMI filters or shielding on the input and output signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1760CFW#PBF Overview

Use the download button to access the LTC1760CFW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
