LTC1798CS8-2.5#TRPBF - Analog Devices

Description: IC VREF SERIES 2.5V 8SOIC

Download LTC1798CS8-2.5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

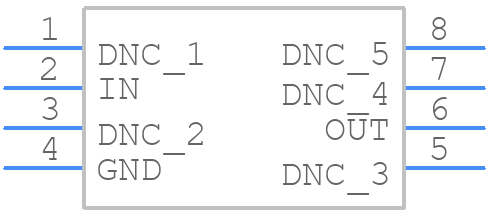

LTC1798CS8-2.5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1798CS8-2.5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LTC1798CS8-2.5#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LTC1798CS8-2.5#TRPBF Details

  • Manufacturer Part Number:

    LTC1798CS8-2.5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.5037 V

  • Output Voltage-Min:

    2.4963 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    40 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

LTC1798CS8-2.5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1798CS8-2.5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor, and consider adding a small series resistor (e.g., 1Ω) between the output and the capacitor to dampen any potential oscillations.
  • The maximum input voltage for the LTC1798CS8-2.5 is 6V, but it's recommended to keep the input voltage below 5.5V to ensure reliable operation and prevent damage to the device.
  • The LTC1798CS8-2.5 is rated for operation up to 125°C, but its performance and accuracy may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally-enhanced package, and consult with Analog Devices' application engineers for guidance.
  • To troubleshoot issues with the LTC1798CS8-2.5, start by verifying the input voltage, output load, and component values. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
