LTC1859CG#PBF - Analog Devices

Description: LTC1859CG#PBF, 16 bit ADC Differential, SPI, Microwire, 28-Pin SSOP

Download LTC1859CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

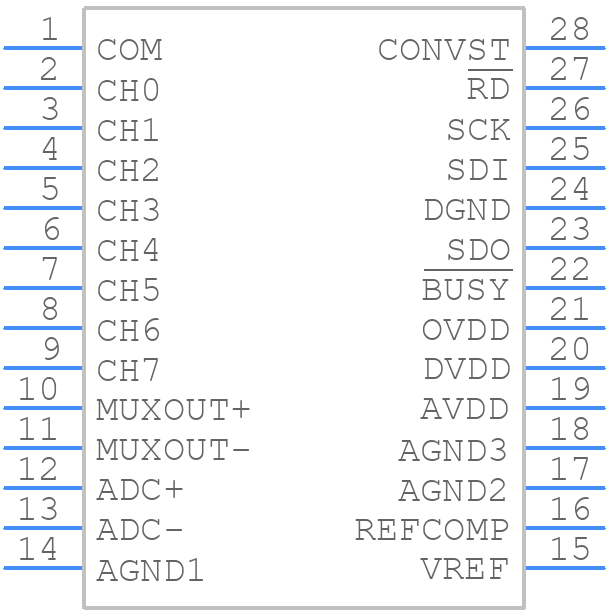

LTC1859CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1859CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC1859CG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom

LTC1859CG#PBF Details

  • Manufacturer Part Number:

    LTC1859CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    5 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1859CG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1859CG involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the analog and digital components on opposite sides of the board. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the LTC1859CG in noisy environments, use a low-pass filter on the input signals, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the LTC1859CG is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the LTC1859CG is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's recommended to follow proper design and manufacturing practices to ensure the device operates reliably in the target application.
  • To troubleshoot issues with the LTC1859CG, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and verify they're within the expected range. If issues persist, consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1859CG#PBF Overview

Use the download button to access the LTC1859CG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
