LTC1860IS8#TRPBF - Analog Devices

Description: µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP

Download LTC1860IS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

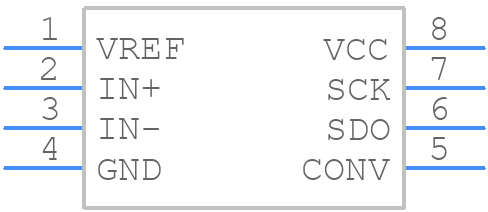

Symbol
LTC1860IS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1860IS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LTC1860IS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LTC1860IS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1860IS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1860IS8#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1860IS8 can be found in the application note AN115, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • To optimize the performance of the LTC1860IS8, it's recommended to consult the datasheet and application notes, and to consider factors such as input and output filtering, noise reduction, and thermal management. Additionally, Analog Devices provides simulation models and evaluation boards that can be used to test and optimize the device in your specific application.
  • The maximum operating temperature range for the LTC1860IS8 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to consult the datasheet and application notes for specific guidance on thermal management and derating for high-temperature operation.
  • Yes, the LTC1860IS8 is qualified for use in high-reliability and automotive applications, and meets the requirements of various industry standards such as AEC-Q100. However, it's recommended to consult the datasheet and application notes, and to contact Analog Devices for specific guidance on qualification and testing for your application.
  • To troubleshoot issues with the LTC1860IS8, it's recommended to consult the datasheet and application notes, and to use debugging tools such as oscilloscopes and logic analyzers to identify the source of the issue. Additionally, Analog Devices provides technical support and resources such as FAQs and application notes to help troubleshoot common issues.
